  1. (Interdisciplinary Graduate Program for BIT Medical Convergence, Kangwon National University, South Korea)
  2. (Dept. of Electronic Engineering and Interdisciplinary Graduate Program for BIT Medical Convergence, Kangwon National University, South Korea)



Convolutional neural networks, Face detection, Age estimation, Inception module, Machine learning

1. Introduction

Age estimation is important in social networks to determine whether a person is young or old. Age is an important attribute in people’s social relations. The ability to classify age accurately and reliably from facial features remains unsatisfactory in addressing the needs of social networks and commercial applications. Past approaches for estimating or classifying age attributes from facial images have relied on differences in facial feature dimensions or “tailored” face descriptors(1). Most have employed classification schemes designed especially for age estimation tasks(2). Few existing methods were designed to address the challenges of unconstrained imaging conditions(3). Moreover, the machine learning methods employed by these methods do not sufficiently function for the given task. This issue is mainly due to the fact that the facial appearances of different people of the same age considerably vary.

There are numerous factors affecting one’s facial appearance. First, different people have different aging rates. Moreover, gender can affect age estimation. As the aging process is not the same for everyone and depends on several factors such as gender, race, and living habits, it is very difficult for humans to guess a person’s age by looking at their pictures(4). In addition, aging can vary within a person; the facial appearance of a person may change more slowly in some years but faster in other years. In most cases, the changes in the appearance of a person within a year are minimal, and it is difficult to tell if a subject is 40 years old or 41 years old from a single photograph(5). Moreover, captured facial images are affected by the pose, illumination, and occlusion, which increase the difficulty of age estimation(5). In the last few years, deep learning has become the main field for age estimation. Deep learning has been proven to perform very well for a variety of computer vision tasks such as human action recognition, handwritten digit recognition, and automatic face recognition. In relation to the task of soft-biometrics analysis, deep learning has recently been applied to the task of apparent age estimation. Although a number of algorithms have been successfully developed for facial age estimation, many challenges remain. In particular, with the popularization of deep neural networks in computer vision, a large-scale labeled dataset becomes more important. The commonly used dataset for age estimation are the FG-NET aging dataset, MORPH dataset(6), and newly released Adience dataset.

Many studies on age estimation have been conducted. In this paper, we strive to demonstrate similar advancements using a deep learning architecture that is designed by considering the limited availability of accurate age labels in existing face dataset. We test our network on the newly released Adience benchmark age estimation face images(3). We show that, despite the challenging nature of the images in the Adience dataset, the simplicity of our network design is evident. Fig. 1 shows a flowchart of our approach.

Fig. 1. Age estimation flowchart

../../Resources/kiee/kiee.2018.67.9.1224/fig1.png

The problem of automatically extracting age-related attributes from face images has received increasing consideration in the last few years, and many methods have been introduced.

Existing methods for age classification are based on calculating the ratios between different metrics of facial features. Facial features (eyes, mouth, nose, chin, etc.) are localized, and their sizes and distances are scaled. These methods require accurate localization of facial features, which alone is a challenging problem. Thus, they are unsuitable for so-called in-the-wild images, which one may expect to find on social media platforms. Other methods consider the aging process as a subspace facial aging pattern, manifold learning, or locally adjusted robust regression. A drawback of these methods is that they require input images to be close to a full frontal view and well-aligned(1). These methods thus produce results only for a constrained dataset of near-frontal images. As a consequence, these methods were shown to be poorly suited for unconstrained images. Some of the above methods use local features to represent facial images. For example, Kwon et al(7) only classified three age groups according to same hand crafted features through facial skin wrinkle analysis and facial geometry features. Geng et al.(8) proposed an Aging pattern Subspace (AGES) approach to define an image sequence of one subject as an aging pattern based on PCA model which obtained the mean absolute error (MAE) of 6.22 on FG-NET(9) dataset. Many nonlinear regression approaches, such as quadratic regression(10), Support Vector Regression (SVR)(11) and Gaussian Process(12), have been used for age classification.

Facial age estimation methods based on label-sensitive learning and age-oriented regression were proposed as improved versions of the relevant component analysis and locally preserving projections(2). These methods are used for distance learning and dimensionality reduction, respectively, with the application of active appearance models as image features. All of these methods were proven to be effective for small and constrained benchmarks for age estimation. To the best of our knowledge, the most effective methods were demonstrated with the “Group Photos” benchmark for understanding the images of groups of people. For the age estimation of unfiltered faces, state-of-the-art performance on this benchmark was achieved by employing local binary pattern (LBP) descriptor variations(1) and a dropout support vector machine (SVM) classifier.

This paper provides a methodology to estimate the real age groups of human by analyzing frontal face images. This process involves four stages: face detection, pre-processing, classification, and age estimation. The system uses two types of face images: training face images where age group is known and test face images where the age group is unknown. We show that our proposed method, applied to the more challenging Adience benchmark designed for the same task, outperforms other recent methods.

2. Materials and Methods

2.1 Database

In this study, we used the Adience dataset for training and testing. Adience images attempt to resize all of the in-visage features, the lighting quality, the head pose, noise, and other aspects. In addition, the images of the dataset were obtained without careful preparation or posing. We used 4,000 facial images from the Adience dataset(1). It includes 1,723 male, 1,777 female, and 500 baby facial images(1). Each image is added with the person’s age range (eight possible ranges)(1). Table 1 summarizes the details of the dataset used. The dataset was acquired from the Computer Vision Lab at the Open University of Israel(OUI)(1). We selected images that were generally front-facing, i.e., 4,000 facially detected images.

Table 1. The dataset

Group label

Age group in years

Male

Female

Number

1

0~2

-

-

500

2

4~6

259

241

500

3

8~13

236

264

500

4

15~20

256

244

500

5

25~32

238

262

500

6

38~43

259

241

500

7

48~53

257

243

500

8

60+

218

282

500

Total

1,723

1,777

4,000

2.2 Face Detection and Preprocessing

Face detection is the basis of the method described by Viola and Jones(13) using Haar-like features. The Viola and Jones face detection method has four steps(14): selection of Haar-like features; creation of an integral image; AdaBoost training; and cascade classification. Most human faces have some similar features (nose, eyes, mouth, etc.) and Haar-like features that match them. Each Haar-like feature composed of two, three, or four rotatable black and white rectangles (14). Integral image is an intermediate image representation. Haar-like features can be computed rapidly using integral image. AdaBoost is a weight-updating algorithm that selects a few number of strong features from a large set of possible features(15).

Cascade classifier has a several stages. Each stage makes a newly weak learner. The cascade classifiers pass over the background regions of the image to be quickly discarded while spending more calculation time on regions that are more promising as being facial ones. The cascade classifiers having more features will achieve higher detection rates and lower false positives.

After face detection, our system crops the detected facial area because the cropped facial area is more effective forage cap age estimation. Facial area cropping reduces the image background and other noise. The cropped facial image then proceeds to histogram equalization to balance the image contrast because every image may not have good contrast between bright and dark. Next, an image sharpening method is used to distinguish between different colors. A rapid transition from black to white appears sharp. A series conversion from black to gray to white appears blurry. Sharpening images increases the contrast along the edges where different colors meet(16). Thus, facial wrinkles and age differences are more effectively shown. The basic sharpening method uses the two-dimensional (2D) finite impulse response (FIR) filter and Lab color space transformations. First, an RGB image is changed to the Lab color space. Then, only the L channel passes through the 2D FIR filter, which is a high-pass filter. Fig. 2 shows face detection and preprocessing.

Fig. 2. Preprocessing: (a) input image, (b) detected and cropped face, (c) after applying histogram equalization, and (d) after applying the sharpening filter

../../Resources/kiee/kiee.2018.67.9.1224/fig2.png

2.3 Convolutional Deep Leaning Based on an Inception Module

We used a deep convolutional neural network architecture code named Inception that achieves the new state of the art for classification, GoogLetNet(17). It has 22 layers with nine inception modules. The inception module is shown in Fig. 3. The idea of the inception layer is to cover a larger area while also retaining a fine resolution for minor information in the images. Thus, it convolve the different sizes in parallel from the most accurate details (1×1) to a larger one (5×5)(17). The basic principle is that a Gabor filter with different sizes will better handle numerous object scales with the benefit of all filters assuming that the inception layer is learnable on the inception layer being learnable(17). The most thorough approach for increasing the quality for deep learning is to use larger layers and a greater amount of data. However, the existence of numerous parameters also means that the model is more susceptible to over-fitting. Thus, to avoid an increase in the number of parameter in the inception layers, all bottleneck procedures are exploited(17). The bottleneck procedure consists of 1×1, 3×3, and 5×5 convolutions, which appear as a bottleneck. Using the bottleneck processes, we can remake the inception module with more non-linearities and fewer parameters(17). Additionally, a max pooling layer is added to the sum of the content of the forward layer. All of the results are associated one after the other and transferred to the next layer. The input size of the perceptivity field in the convolutional deep-learning-based inception module is 224×224 in the RGB color map. It has 22 layers and almost twelve-fold fewer parameters (it is faster than AlexNet, which is the first convolutional neural net architecture and much more accurate).

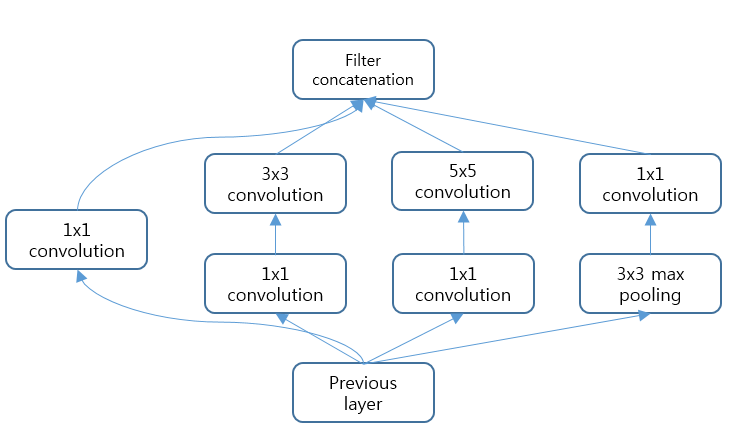

Fig. 3. Inception module with dimension reductions

../../Resources/kiee/kiee.2018.67.9.1224/fig3.png

2.4 Training and Testing

The Adience benchmark is one of the most recent dataset designed for age estimation from face images. In this study, the Adience dataset was used to evaluate the efficiency of the proposed method. It consists of the unconstrained face images of 2,284 subjects and has eight age groups. We used 4,000 face images, and each age group comprised 500 images. We cleaned the dataset to remove images in which faces were not fully viewable. The training dataset used 3,200 images, with 400 in each of the eight age groups. The testing set comprised 800 images, and each age group had 100 images. The initial learning rate was 0.0001 with mini-batches of 10 images and 10,000 iterations. The training dataset used k-fold cross validation. In k-fold cross validation, the dataset is first divided into five equally sized segments. Accordingly, in each iteration, another fold of the dataset was held out for validation, while the remaining k−1 folds were used for training(18).

The dataset was generally stratified prior to being divided into k folds. Stratification ordered the data to ensure that each fold was representative of the whole. In our experiment, each test class comprised 20% of the data. Our method was implemented using the Matlab (2017a) open- source framework. Training was performed using a GeForce GTX 750Ti with 640 CUDA cores and 8GB of video memory. Training each network required approximately 2 h, and predicting the age for a single image using our network required approximately 450ms.

We compared four methods: “LBP + FPLBP + Dropout 0.5,” “LBP + FPLBP + Dropout 0.8,” “AlexNet(19),” and “Deep-CNN(1).” The face representation for the first two methods uses the LBP and four-patch LBP (FPLBP)(3). The standard linear dropout SVM was used for classification. The LBP description of a pixel image was produced by thresholding the 3×3 neighborhood with the central pixel and devolving the result as a binary code(20). The LBP operator has been extended to use different neighborhoods sizes by allowing different sampling points and a larger neighborhood radius.

The FPLBP is another variation of the LBP(20). In the FPLBP, two rings with different radii are used and centered at the pixel. The 3×3 patches are distributed around these two rings, and two center symmetric patches in the inner ring are compared with two center symmetric patches in the outer ring positioned patches away along the circle.

An SVM is a discriminative classifier formally defined by a separating hyperplane. Given labeled training data in supervised learning, the SVM outputs an optimal hyperplane that categorizes new examples. “Dropout 0.5” denotes a dropout SVM with a 50% probability of dropping features, and “Dropout 0.8” means that 80% of the input features are dropped, randomly and independently, from the input feature vector.

AlexNet is the name of a convolutional neural network that competed in the ImageNet Large Scale Visual Recognition Challenge. AlexNet has eight layers. The first five are convolution layers, and last three are fully connected layers. The first convolutional layer performs convolution. Its size is 11×11, and the max pooling size is 3×3 with local response normalization (LRN). The same operations are performed in the second convolution layer with a size of 5×5. The size of the third, fourth, and fifth convolutional layers is 3×3. Two fully connected layers are used with dropout followed by softmax layers at the end(19).

Deep-CNN(1) has five layers. The first three are convolutional layers, and the last two are fully connected layers. The first convolutional layer is an input of 7×7 pixels, ReLU (Rectified Linear Unit), a max pooling layer taking the maximal value of 3×3 regions with two-pixel strides, and a local response normalization layer. The size of the second convolutional layer is 5×5 pixels, and it consists of ReLU, a max pooling layer, and local response normalization. The size of the last convolutional layer 3×3 pixels, and it consists of ReLU and a max pooling layer. The first fully connected layer receives the output of the last convolutional layer and contains 512 neurons, ReLU, and a dropout layer. The second fully connected layer contains 512 neurons, followed by ReLU and a dropout. The last fully connected layer maps the final classes for the age. The output of the last fully connected layer is fed into a softmax layer that assigns a probability for each class. Deep-CNN(1) is a smaller network design motivated to reduce the risk of over-fitting.

3. Results

Experiments were conducted to evaluate the proposed method. Our proposed method includes “face detection,” “histogram equalization,” an “image sharpening filter,” and a “convolutional deep-learning-based inception module.” Table 2 presents a matrix of the multi-class age estimation, and a comparison of the performance of the proposed method and recent related methods is presented in Table 3. The Table 3 is shows the latter shows the exact accuracy and so-called one-off accuracy, which is where the result is off by one adjacent age label. The exact accuracy means that our method classifies the age group correctly. The one-off accuracy includes one adjacent age group, above or below. On the basis of our results, the proposed method significantly outperforms in terms of the exact accuracy and one-off accuracy. These results confirm the efficiency of the proposed work. Table 2 indicates that the “60+ years” age label is classified with the highest accuracy of 76%. The labels of “8-13,” “38-43,” and “48-53” years of age are classified with the lowest accuracies of 32%, 38%, and 29%, respectively. The label of “48-53” years of age shows the lowest accuracy. The “48-53“ age group is misclassified into ”60+” group as 43%. One of possible reasons is that the facial shape of these two age groups are very similar. And “48-53“ age group does not have their own facial features (e.g. wrinkles) which can distinguish them from ”60+” group.

Table 2. Confusion matrix of Facial age estimation

Group label

1

2

3

4

5

6

7

8

Actual (age group)

Estimated (age group)

0~2

4~6

8~13

15~20

25~32

38~43

48~53

60+

0~2

0.69

0.5

0.03

0.02

0.02

0

0

0

4~6

0.28

0.46

0.12

0.05

0

0.01

0

0

8~13

0.01

0.03

0.32

0.11

0.02

0.03

0.01

0.03

15~20

0.02

0

0.46

0.65

0.11

0.07

0.03

0.02

25~32

0

0

0.03

0.12

0.54

0.21

0.07

0.05

38~43

0

0

0.03

0

0.29

0.38

0.17

0.03

48~53

0

0.01

0.01

0.05

0.01

0.12

0.29

0.11

60+

0

0

0

0

0.01

0.18

0.43

0.76

Table 3. Overall age estimation results with different approaches

Method

Exact accuracy

One-off accuracy

LBP + FPLBP + Dropout 0.5(3)

44.5%

80.6%

LBP + FPLBP + Dropout 0.8(3)

45.1%

79.5%

Deep-CNN(1)

50.7%

84.7%

AlexNet(19)

31.75%

66.12%

Our Proposed method

51.12%

89.37%

Correctly estimated images are shown Fig. 4, and Fig. 5 shows incorrectly estimated images. In Table 4, we tested 4000 images with histogram equalization, sharpened and original. Table 4 shows preprocessing filter can increase the age estimation accuracy.

Fig. 4. Correctly estimated images for age ranges of (a) 0-2, (b) 4-6, (c) 8-13, (d) 15-20, (e) 25-32, (f) 38-43, (g) 48-53, and (h) 60+.

../../Resources/kiee/kiee.2018.67.9.1224/fig4.png

Fig. 5. Incorrectly estimated images. Actual age group (estimated age group): (a) 0-2 (4-6), (b) 4-6 (0-2), (c) 8-13 (48-53), (d) 15-20 (48-53), (e) 25-32 (8-13), (f) 38-43 (15-20), (g) 48-53 (25-32), and (h) 60+(8-13).

../../Resources/kiee/kiee.2018.67.9.1224/fig5.png

Table 4. Overall age estimation results with different pre- processing

Input image type

Exact accuracy

One-off accuracy

Original images

42%

78.81%

Histogram images

46.62%

84.25%

Sharpen images

48.25%

84%

Our proposed method

51.12%

89.37%

From Table 2, the baby faces of the first two labels (“0-2” and “4-6”) look very similar and are difficult to estimate. The groups associated with Labels 6 (38-43) and 7 (48-53) are classified with accuracies of 38% and 29%, respectively. It is difficult to estimate the age of people in their 30s and 40s. However, the one-off accuracies of Labels 6 and 7 are 71% and 89%, respectively. The oldest group, label 8 (60+) was classified to 76%, indicating that older people’s facial features are distinguishable. For this range of ages, people’s facial wrinkles are more distinctive than those in other age groups.

We also tested underage people under 20 years of age and gender-based age estimation. From Table 5, the exact accuracy and one-off accuracy of males are higher than those of females. As a consequence of the influence of makeup, it can be more difficult to estimate the real age of women. In k-fold cross-validation, 377 female images and 323 male images were used for the test. Further, Label 1 (0-2) was excluded in this experiment because it is very difficult to estimate the gender for this age group.

Table 5. Gender-based age estimation

Male

Female

Exact accuracy

52.95%

49.14%

One-off accuracy

89.42%

86.69%

The results for underage estimation for the underage group are listed in Table 6. Fig. 6 shows some correctly estimated face images. Labels 1-4 are in the underage group. This experiment might help to control illegal underage activities such as entering bars or wine shops and purchasing tobacco products. Fig. 7 shows incorrectly estimated face images as adult’s age for the underage group. Adult age estimation for people over 20 years of age is presented in Table 7. Labels 5-8 are in the adult age group. The results of adult age estimation are slightly lower than those for underage estimation.

Table 6. Underage estimation for the underage group

Misclassified

Correctly classified

6.25%

93.75%

Fig. 6. Correctly estimated as underage. The age groups are (a) 15-20, (b) 15-20, (c) 15-20, and (d) 15-20

../../Resources/kiee/kiee.2018.67.9.1224/fig6.png

Fig. 7. Incorrectly estimated as adult age. The actual (estimated) age groups are (a) 15-20 (48-53), (b) 15-20 (25-32), (c) 15-20 (38-43), and (d) 15-20 (38-43)

../../Resources/kiee/kiee.2018.67.9.1224/fig7.png

Table 7. Adult age estimation for the adult age group

Misclassified

Correctly classified

8.75%

91.25%

Table 8 summarizes the results for Labels 4 (15-20) and 5 (25-32). These two age groups are at the borderline between adult and underage. “Correctly classified” in Table 8 means that the age group was correctly classified as adult or underage, even though the age label cannot be precisely estimated.

Table 8. Age estimation of borderline groups

Age group in years

15-20

25-32

Exact accuracy

65%

54%

Correctly classified

83%

85%

4. Conclusions

In this paper, we proposed a method to perform age estimation based on facial images by using a convolutional neural network based on an inception module. It was modified and fine-tuned to perform age estimation, and it was trained for face detection for a large dataset. The proposed method outperformed the previous approach for the Adience dataset by 4%, which is the newest challenging age estimation benchmark consisting of unconstrained facial images. In addition to facial age estimation, we tested underage and gender-based age estimation. Underage estimation helps to prevent illegal underage activities such as entering bars and purchasing alcohol or tobacco products.

Our method significantly outperforms recent related approaches. These results provide a remarkable baseline for deep-learning-based approaches. The proposed method can be improved with more data sets. Future work will focus on obtaining a higher accuracy for age estimation with large data sets and the development of a gender estimation architecture for the proposed method.
