1. ์„œ ๋ก

๋ฐฐ์ „๋ฐ˜์€ ์ „๋ ฅ์‹œ์Šคํ…œ์˜ ์ค‘์š”ํ•œ ์„ค๋น„๋กœ, ์ „๋ ฅ๊ณต๊ธ‰์˜ ์•ˆ์ •์„ฑ๊ณผ ํšจ์œจ์„ฑ์„ ํ™•๋ณดํ•˜๋Š” ๋ฐ ํ•„์ˆ˜์ ์ธ ์—ญํ• ์„ ํ•œ๋‹ค. ๊ตญ๋‚ด์—์„œ๋Š” ๋ฐฐ์ „๋ฐ˜์˜ ์ˆ˜๋ช…์„ ์ผ๋ฐ˜์ ์œผ๋กœ 20~30๋…„ ์‚ฌ์ด๋กœ ์ถ”์ •ํ•˜๊ณ  ์žˆ์œผ๋ฉฐ, ์ด ๊ธฐ๊ฐ„์ด ๊ฒฝ๊ณผํ•˜๋ฉด ์œ„ํ—˜๋„๋ฅผ ๊ณ ๋ คํ•˜์—ฌ ๋ฌด์กฐ๊ฑด ๊ต์ฒดํ•˜๋Š” ์‹์˜ ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ์ง„ํ–‰ํ•˜๊ณ  ์žˆ๋‹ค. ์ด๋Ÿฌํ•œ TBM (Time-Based Management) ๋ฐฉ์‹์€ ์ •ํ•ด์ง„ ์‹œ๊ฐ„์„ ๊ธฐ๋ฐ˜์œผ๋กœ ์˜ˆ๋ฐฉ์ ์œผ๋กœ ์„ค๋น„๋ฅผ ๊ต์ฒดํ•˜๋Š” ๊ฒƒ์„ ์˜๋ฏธํ•˜๋ฉฐ, ์ดˆ๊ธฐ ๋ฐฐ์ „๋ฐ˜์„ ๋น„๋กฏํ•œ ์ „๋ ฅ์„ค๋น„๋ฅผ ์ตœ์ดˆ ๋„์ž…ํ•  ๋‹น์‹œ์˜ ๊ธฐ์ˆ ์  ์—ฌ๊ฑด์ด ๋ฐ˜์˜๋˜์—ˆ๋˜ ๊ฒƒ์œผ๋กœ ์ด๋Ÿฌํ•œ ์ ‘๊ทผ ๋ฐฉ์‹์ด ํ˜„์žฌ๊นŒ์ง€ ์ด์–ด์ง€๊ณ  ์žˆ๋Š” ์‹ค์ •์ด๋‹ค.

์ตœ๊ทผ์—๋Š” CBM (Condition-Based Management)์„ ์ ์šฉํ•˜์—ฌ ๋ฐฐ์ „๋ฐ˜์˜ ์ƒํƒœ๋ฅผ Monitoringํ•˜๋Š” ๋…ธ๋ ฅ์ด ์ด๋ฃจ์–ด์ง€๊ณ  ์žˆ๋‹ค. ๋ฐฐ์ „๋ฐ˜์˜ ๊ณ ์žฅ์„ ์œ ๋ฐœํ•  ์ˆ˜ ์žˆ๋Š” ์ฃผ์š” ์œ„์น˜์— ๋ถ€๋ถ„๋ฐฉ์ „๊ณผ ์˜จ๋„ ์„ผ์„œ ๋“ฑ์„ ์„ค์น˜ํ•˜์—ฌ ์‹ค์‹œ๊ฐ„์œผ๋กœ ์‹ ํ˜ธ๋ฅผ Monitoringํ•จ์œผ๋กœ์จ ์ „๋ ฅ์„ค๋น„์˜ ์ƒํƒœ๋ฅผ ๊ฐ์‹œํ•˜๊ณ  ์žˆ๋‹ค[1]. ๊ทธ๋Ÿฌ๋‚˜ ์—ฌ์ „ํžˆ ์ด๋Ÿฌํ•œ Monitoring ์‹ ํ˜ธ๋ฅผ Inspection ๋ฐ Test ๊ฒฐ๊ณผ์™€ ์ข…ํ•ฉ์ ์œผ๋กœ ๋ถ„์„ํ•˜์ง€ ์•Š๊ณ , ๋ฏธ๋ฆฌ ์ •ํ•ด ๋†“์€ ์ž„๊ณ„๊ฐ’์— ๋„๋‹ฌํ–ˆ์„ ๋•Œ ๊ฒฝ๊ณ ๋ฅผ ์•Œ๋ฆฌ๋Š” ์ˆ˜์ค€์— ๋จธ๋ฌผ๋Ÿฌ ์žˆ๋‹ค. ์ด์™€ ๊ฐ™์€ ๊ด€๋ฆฌ๋ฐฉ๋ฒ•์€ ์ „๋ ฅ์„ค๋น„์˜ ์‹ค์ œ ์ƒํƒœ๋ฅผ ์ œ๋Œ€๋กœ ๋ฐ˜์˜ํ•˜์ง€ ๋ชปํ•จ์œผ๋กœ์จ ์ž์›๋‚ญ๋น„์™€ ์šด์˜๋น„์šฉ์˜ ์ฆ๊ฐ€๋ฅผ ์ดˆ๋ž˜ํ•  ์ˆ˜ ์žˆ๋‹ค.

๋ณธ ์—ฐ๊ตฌ์˜ ๋ชฉ์ ์€ ํ•ด์™ธ ๋ฐฐ์ „๋ฐ˜ ์ž์‚ฐ๊ด€๋ฆฌ์˜ ์‚ฌ๋ก€๋ฅผ ์กฐ์‚ฌํ•˜๊ณ , ์ด๋ฅผ ๋ฐ”ํƒ•์œผ๋กœ ๋ฐฐ์ „๋ฐ˜์˜ ์œ„ํ—˜๋„๋ฅผ ์™„ํ™”ํ•จ๊ณผ ๋™์‹œ์— ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•  ์ˆ˜ ์žˆ๋Š” ์ž์‚ฐ๊ด€๋ฆฌ ๋ฐฉ์•ˆ์„ ์ œ์‹œํ•˜๋Š” ๊ฒƒ์ด๋‹ค. ํ•ด์™ธ์˜ ์„ ์ง„ ์‚ฌ๋ก€๋ฅผ ๋ถ„์„ํ•˜์—ฌ ๋ฐฐ์ „๋ฐ˜ ์ž์‚ฐ๊ด€๋ฆฌ์— ์ ์šฉ ๊ฐ€๋Šฅํ•œ ํšจ์œจ์ ์ธ ์ „๋žต๊ณผ ๊ธฐ์ˆ ์„ ํƒ๊ตฌํ•จ์œผ๋กœ์จ, ํ–ฅํ›„ ๊ตญ๋‚ด ๋ฐฐ์ „๋ฐ˜ ์ž์‚ฐ๊ด€๋ฆฌ์˜ ๋ฐœ์ „ ๋ฐฉํ–ฅ์„ ์ œ์‹œํ•˜๊ณ ์ž ํ•œ๋‹ค. ์ด๋ฅผ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜ ์ž์‚ฐ๊ด€๋ฆฌ์˜ ํšจ์œจ์„ฑ์„ ๋†’์ด๊ณ , ์ „๋ ฅ์‹œ์Šคํ…œ์˜ ์•ˆ์ •์„ฑ๊ณผ ์‹ ๋ขฐ์„ฑ์„ ๊ฐ•ํ™”ํ•  ์ˆ˜ ์žˆ๋Š” ์ „๋žต์„ ์ œ์‹œํ•˜๊ณ ์ž ํ•˜์˜€๋‹ค.

2. ๋ฐฐ์ „๋ฐ˜์˜ Component์™€ Major Failure

2.1 Component๋ณ„ ๋ถ„๋ฅ˜

๋ฐฐ์ „๋ฐ˜์€ ์ „๋ ฅ์‹œ์Šคํ…œ์—์„œ ์ „๋ ฅ์„ ๋ถ„๋ฐฐํ•˜๊ณ  ์ œ์–ดํ•˜๋ฉฐ ๊ณ„ํ†ต์„ ๋ณดํ˜ธํ•˜๋Š” ์ค‘์š”ํ•œ ์—ญํ• ์„ ํ•œ๋‹ค. ๋ฐฐ์ „๋ฐ˜์˜ ์ž์‚ฐ๊ด€๋ฆฌ๋Š” ์ „๋ ฅ์‹œ์Šคํ…œ์˜ ์‹ ๋ขฐ์„ฑ์„ ๋†’์ด๊ณ  ์˜ˆ์ƒ์น˜ ๋ชปํ•œ ๊ณ ์žฅ์„ ๋ฐฉ์ง€ํ•˜๊ธฐ ์œ„ํ•ด ํ•„์ˆ˜์ ์ด๋‹ค. ๋ฐฐ์ „๋ฐ˜์˜ Component๋Š” ์—ญํ• ๊ณผ ๋™์ž‘ ๋ฐฉ์‹์˜ ์ฐจ์ด์— ๋”ฐ๋ผ ํฌ๊ฒŒ Active Component์™€ Passive Component๋กœ ๊ตฌ๋ถ„๋œ๋‹ค. Active Component๋Š” ์ „๊ธฐ ํšŒ๋กœ์—์„œ ์‹ค์ œ๋กœ ์ฐจ๋‹จ ๋™์ž‘์„ ์ˆ˜ํ–‰ํ•˜๊ฑฐ๋‚˜ ์ „๊ธฐ์  ์‹ ํ˜ธ๋ฅผ ์ œ์–ดํ•˜๋Š” Component๋กœ, ํšŒ๋กœ์˜ ๋ณดํ˜ธ์™€ ์ œ์–ด ๋ฐ ์ „ํ™˜ ๊ธฐ๋Šฅ์„ ์ˆ˜ํ–‰ํ•œ๋‹ค. Active Component์—๋Š” ์ฐจ๋‹จ๊ธฐ (Circuit Breaker), ๋ณดํ˜ธ ๊ณ„์ „๊ธฐ (Protective Relay), ๋กœ์ปฌ ์ œ์–ด ํŒจ๋„ (Local Control Panel), ์ „๋ฅ˜ / ์ „์•• ๋ณ€์„ฑ๊ธฐ (Current Transformer / Potential Transformer) ๋“ฑ์ด ํฌํ•จ๋œ๋‹ค. ์ด์™€ ๊ฐ™์€ Active Component๋Š” Monitoring, Inspection ๋ฐ Test๋ฅผ ํ†ตํ•ด ์ˆ˜๋ช…์ด ๋‹คํ•œ ์„ค๋น„์— ๊ณ ์žฅ์ด ๋ฐœ์ƒํ•˜๊ธฐ ์ „ Refurbishment์™€ Retrofit ๋˜๋Š” Remanufacturing๊ณผ ๊ฐ™์€ ์ˆ˜๋ช…์—ฐ์žฅ์˜ ์กฐ์น˜๋ฅผ ์ทจํ•  ์ˆ˜ ์žˆ๋‹ค. ์—ฌ๊ธฐ์—์„œ Refurbishment๋Š” ์ˆ˜๋ช…์ด ๋‹คํ•œ ์ „๋ ฅ์„ค๋น„์˜ ์„ฑ๋Šฅ์„ ๋ณต์›ํ•˜๊ณ  ๊ฐœ์„ ํ•˜๋Š” ๊ณผ์ •์„ ์˜๋ฏธํ•˜๋ฉฐ, ์ฃผ๋กœ ๋ถ€ํ’ˆ์˜ ๊ต์ฒด์™€ ์ฒญ์†Œ, ๊ทธ๋ฆฌ๊ณ  ์žฌ์กฐ์ • (์ „๋ ฅ์„ค๋น„๊ฐ€ ์ตœ์ ์˜ ์„ฑ๋Šฅ์„ ๋ฐœํœ˜ํ•  ์ˆ˜ ์žˆ๋„๋ก ์„ค์ •์„ ๋‹ค์‹œ ์กฐ์ •ํ•˜๋Š” ์ž‘์—…) ๋“ฑ์„ ํฌํ•จํ•œ๋‹ค. Retrofit์€ ์ˆ˜๋ช…์ด ๋‹คํ•œ ์ „๋ ฅ์„ค๋น„์— ์ตœ์‹  ๊ธฐ์ˆ ์„ ๋„์ž…ํ•˜์—ฌ ์„ฑ๋Šฅ์„ ํ–ฅ์ƒ์‹œํ‚ค๋Š” ๊ฒƒ์„ ๋งํ•˜๋ฉฐ, ๋” ๋†’์€ ํšจ์œจ์„ฑ๊ณผ ์‹ ๋ขฐ์„ฑ์„ ์ œ๊ณตํ•˜๊ธฐ ์œ„ํ•ด ์ƒˆ๋กœ์šด ๋ถ€ํ’ˆ์ด๋‚˜ ์‹œ์Šคํ…œ์„ ์ถ”๊ฐ€ํ•˜๋Š” ๊ฒƒ์„ ํฌํ•จํ•œ๋‹ค. ๊ทธ๋ฆฌ๊ณ  Remanufacturing์€ ์ˆ˜๋ช…์ด ๋‹คํ•œ ์ „๋ ฅ์„ค๋น„๋ฅผ ์™„์ „ํžˆ ๋ถ„ํ•ดํ•˜๊ณ , ๋ชจ๋“  ๋ถ€ํ’ˆ์„ ๊ฒ€์‚ฌ ๋ฐ ์žฌ์ƒํ•˜์—ฌ ์ƒˆ๋กœ์šด ์ „๋ ฅ์„ค๋น„์™€ ๋™๋“ฑํ•œ ์ˆ˜์ค€์œผ๋กœ ๋ณต์›ํ•˜๋Š” ๊ณผ์ •์„ ์˜๋ฏธํ•œ๋‹ค. ๋ฐ˜๋ฉด, Passive Component๋Š” ์ „๊ธฐ์  ์‹ ํ˜ธ๋ฅผ ์ง์ ‘ ์ œ์–ดํ•˜์ง€๋Š” ์•Š์ง€๋งŒ ์ „๊ธฐ ํšŒ๋กœ๋ฅผ ๊ตฌ์„ฑํ•˜๊ณ  ์ง€์ง€ํ•˜๋Š” ์—ญํ•  ๋“ฑ์„ ์ˆ˜ํ–‰ํ•˜๋ฉฐ, ๋ฌผ๋ฆฌ์  ์—ฐ๊ฒฐ ๋ฐ ์ „๋ ฅ ๋ถ„๋ฐฐ์˜ ์—ญํ• ์„ ํ•œ๋‹ค. ์ด์™€ ๊ฐ™์€ Passive Component์—๋Š” ๋ฒ„์Šค๋ฐ”, ์™ธํ•จ, ์ผ€์ด๋ธ” ๋ฐ ์• ์ž ๋“ฑ์ด ํฌํ•จ๋œ๋‹ค. ๋ฐฐ์ „๋ฐ˜์˜ Component๋ฅผ ํ‘œ 1์— ๊ตฌ๋ถ„ํ•˜์—ฌ ๋‚˜ํƒ€๋‚ด์—ˆ๋‹ค.

ํ‘œ 1 ๋ฐฐ์ „๋ฐ˜ Component์˜ ๋ถ„๋ฅ˜

Table 1 Classification of MV switchgear components

๊ตฌ์กฐ

Component

๋ฐฐ์ „๋ฐ˜

Active Component

์ฐจ๋‹จ๊ธฐ, ๋ณดํ˜ธ ๊ณ„์ „๊ธฐ, ๋กœ์ปฌ ์ œ์–ด ํŒจ๋„, ์ „๋ฅ˜ / ์ „์•• ๋ณ€์„ฑ๊ธฐ

Passive Component

๋ฒ„์Šค๋ฐ”, ์™ธํ•จ, ์ผ€์ด๋ธ”, ์• ์ž

๋ฏธ๊ตญ์ด๋‚˜ ์˜๊ตญ๊ณผ ๊ฐ™์€ ๊ตญ๊ฐ€์—์„œ๋Š” ๊ทœ์ œ๊ธฐ๊ด€ (Regulator)์— ์˜ํ•ด ์ „๋ ฅ๊ณ„ํ†ต์˜ ์šด์˜์ด ๊ณ„ํš๋˜๋ฉฐ, ์›์ž๋ ฅ ๋ฐœ์ „์†Œ ๋“ฑ ์ฃผ์š” ์ธํ”„๋ผ ์„ค๋น„์˜ ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ์œ„ํ•ด Passive Component์— ๋Œ€ํ•ด ๋ผ์ด์„ผ์Šค ๊ฐฑ์‹  ์ œ๋„๋ฅผ ์ ์šฉํ•˜๊ณ  ์žˆ๋‹ค. ์›์ž๋ ฅ ๋ฐœ์ „์†Œ์™€ ๊ฐ™์€ ์ฃผ์š” ์ธํ”„๋ผ ์„ค๋น„์—์„œ๋Š” ๊ธฐ๋ณธ์ ์œผ๋กœ 40๋…„์˜ ๋ผ์ด์„ผ์Šค๋ฅผ ๋ฐœ๊ธ‰๋ฐ›์•„ ๋ฐฐ์ „๋ฐ˜์„ ์šด์ „ํ•˜๊ณ  ์žˆ์œผ๋ฉฐ, ๋ณ„๋„์˜ Monitoring๊ณผ Inspection, ๊ทธ๋ฆฌ๊ณ  Test ๋“ฑ์„ ํ†ตํ•ด ๋ผ์ด์„ผ์Šค๋ฅผ ๊ฐฑ์‹ ํ•˜์—ฌ 20๋…„์˜ ์ˆ˜๋ช…์—ฐ์žฅ์„ ์‹ค์‹œํ•œ๋‹ค[2]. ๋ผ์ด์„ผ์Šค ๊ธฐ๊ฐ„ ๋™์•ˆ Active Component๋Š” Monitoring, Inspection, Test ๋“ฑ์„ ํ†ตํ•ด ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ํ‰๊ฐ€ํ•œ ํ›„ Refurbishment์™€ Retrofit ๋“ฑ์˜ ์ˆ˜๋ช…์—ฐ์žฅ ์ž‘์—…์„ ์‹ค์‹œํ•œ๋‹ค. ๋˜ํ•œ, Passive Component์— ๋Œ€ํ•ด์„œ๋„ Monitoring๊ณผ Inspection ๋“ฑ์„ ์ง„ํ–‰ํ•˜๋ฉฐ, ํ•ด๋‹น ๊ธฐ๊ฐ„์ด ๋„๋ž˜ํ•˜๋ฉด ์ ์ ˆํ•œ ์œ ์ง€๋ณด์ˆ˜ ๊ณผ์ •์„ ๊ฑฐ์นœ ํ›„ ๋ผ์ด์„ผ์Šค๋ฅผ ๊ฐฑ์‹ ํ•  ์ˆ˜ ์žˆ๋‹ค. ํŠนํžˆ, Passive Component์˜ ๋ผ์ด์„ผ์Šค ๊ฐฑ์‹ ์„ ์œ„ํ•ด์„œ๋Š” ๊ตฌ์กฐ์  ์•ˆ์ •์„ฑ๊ณผ ์žฅ๊ธฐ์  ์‹ ๋ขฐ์„ฑ์„ ๋ณด์žฅํ•˜๋Š” ๋ฐ ์ค‘์ ์„ ๋‘์–ด์•ผ ํ•œ๋‹ค. ์ด๋ฅผ ์œ„ํ•ด ์™ธํ•จ๊ณผ ์• ์ž์™€ ๊ฐ™์€ Passive Component์˜ ๋ฌผ๋ฆฌ์  ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ํ‰๊ฐ€ํ•˜๊ณ , ์˜ˆ์ƒ๋˜๋Š” ์‚ฌ์šฉํ™˜๊ฒฝ๊ณผ ์šด์ „์กฐ๊ฑด์—์„œ์˜ ์„ฑ๋Šฅ์„ ํ‰๊ฐ€ํ•˜์—ฌ ์žฅ๊ธฐ์  ์‹ ๋ขฐ์„ฑ์„ ํ™•๋ณดํ•œ๋‹ค. ๋˜ํ•œ ์ „์ฒด ์‹œ์Šคํ…œ์˜ ์•ˆ์ „์„ฑ์„ ํ‰๊ฐ€ํ•˜์—ฌ ๊ทœ์ œ๊ธฐ๊ด€์˜ ๊ธฐ์ค€์„ ์ถฉ์กฑ์‹œํ‚ค๋Š” ๊ฒƒ์ด ์ค‘์š”ํ•˜๋‹ค.

์ผ๋ฐ˜์ ์œผ๋กœ ๋ฐฐ์ „๋ฐ˜๊ณผ ๊ฐ™์€ ์ „๋ ฅ์„ค๋น„์˜ ๊ณ ์žฅ์€ ํฌ๊ฒŒ Major Failure์™€ Minor Failure๋กœ ๊ตฌ๋ถ„ํ•  ์ˆ˜ ์žˆ๋‹ค. Major Failure๋Š” ์‹œ์Šคํ…œ์˜ ์ฃผ์š” ๊ธฐ๋Šฅ์— ์˜ํ–ฅ์„ ๋ฏธ์น˜๋Š” ๊ณ ์žฅ์œผ๋กœ, Active Component์—๋Š” ์ฐจ๋‹จ๊ธฐ๊ฐ€ ์žˆ์œผ๋ฉฐ, Passive Component์—๋Š” ๋ฒ„์Šค๋ฐ”์™€ ์ผ€์ด๋ธ”์ด ์žˆ๋‹ค. ์ด๋Ÿฌํ•œ Component์— ๊ณ ์žฅ์ด ๋ฐœ์ƒํ•˜๋ฉด ์ „์ฒด ์‹œ์Šคํ…œ์˜ ์šด์˜์— ์‹ฌ๊ฐํ•œ ์˜ํ–ฅ์„ ๋ฏธ์น  ์ˆ˜ ์žˆ๋‹ค. ๋ฐ˜๋ฉด, Minor Failure๋Š” ์‹œ์Šคํ…œ์˜ ์ฃผ์š” ๊ธฐ๋Šฅ์— ํฐ ์˜ํ–ฅ์„ ๋ฏธ์น˜์ง€ ์•Š๋Š” ๊ณ ์žฅ์œผ๋กœ, ์ฐจ๋‹จ๊ธฐ์™€ ๋ฒ„์Šค๋ฐ” ๋ฐ ์ผ€์ด๋ธ”์„ ์ œ์™ธํ•œ Component์˜ ๊ณ ์žฅ์ด ์ด์— ํ•ด๋‹น๋œ๋‹ค. ์ด์™€ ๊ฐ™์ด ๋ฐฐ์ „๋ฐ˜์˜ Component๋ฅผ Active Component์™€ Passive Component๋กœ ๊ตฌ๋ถ„ํ•˜๊ณ , ๊ณ ์žฅ์˜ ์œ ํ˜•์— ๋”ฐ๋ฅธ ๊ฐ Component๋ณ„ ์ž์‚ฐ๊ด€๋ฆฌ ์ „๋žต์„ ์ ์šฉํ•จ์œผ๋กœ์จ ๋ฐฐ์ „๋ฐ˜์˜ ์‹ ๋ขฐ์„ฑ์„ ๋†’์ด๊ณ  ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•  ์ˆ˜ ์žˆ๋‹ค. Active Component์™€ Passive Component์˜ ์ ์ ˆํ•œ ๊ด€๋ฆฌ๋Š” ๋ฐฐ์ „๋ฐ˜์˜ ํšจ์œจ์ ์ธ ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ๊ฐ€๋Šฅํ•˜๊ฒŒ ํ•˜๋ฉฐ, ์ „๋ ฅ์‹œ์Šคํ…œ์˜ ์•ˆ์ •์„ฑ๊ณผ ์‹ ๋ขฐ์„ฑ์„ ๋ณด์žฅํ•˜๋Š” ๋ฐ ์ค‘์š”ํ•œ ์—ญํ• ์„ ํ•œ๋‹ค.

2.2 Major Failure

Major Failure๋Š” ๋ฐฐ์ „๋ฐ˜ ์‹œ์Šคํ…œ์˜ ์ฃผ์š” ๊ธฐ๋Šฅ์— ์ค‘๋Œ€ํ•œ ์˜ํ–ฅ์„ ๋ฏธ์น˜๋Š” ๊ณ ์žฅ์œผ๋กœ, ์‹ ์†ํ•œ ๋Œ€์‘์ด ์ด๋ฃจ์–ด์ง€์ง€ ์•Š์œผ๋ฉด ๊ด‘๋ฒ”์œ„ํ•œ ์ •์ „์ด๋‚˜ ์ „๋ ฅ์„ค๋น„์˜ ์†์ƒ์„ ์ดˆ๋ž˜ํ•  ์ˆ˜ ์žˆ๋‹ค[3]. ๋ณธ ์ ˆ์—์„œ๋Š” Major Failure๋ฅผ ์œ ๋ฐœํ•  ์ˆ˜ ์žˆ๋Š” ์ฃผ์š” Component์ธ ์ฐจ๋‹จ๊ธฐ์™€ ๋ฒ„์Šค๋ฐ”, ๊ทธ๋ฆฌ๊ณ  ์ผ€์ด๋ธ”์˜ ๊ณ ์žฅ์— ๋Œ€ํ•ด ๋‹ค๋ฃจ๊ณ ์ž ํ•œ๋‹ค.

์ฐจ๋‹จ๊ธฐ๋Š” ๋ฐฐ์ „๋ฐ˜ ๋‚ด์—์„œ ๋ณดํ˜ธ ๊ณ„์ „๊ธฐ๋กœ๋ถ€ํ„ฐ ์‹ ํ˜ธ๋ฅผ ๋ฐ›์•„ ํšŒ๋กœ๋ฅผ ์ฐจ๋‹จํ•˜๊ฑฐ๋‚˜ ํˆฌ์ž…ํ•˜๋Š” ๊ธฐ๋Šฅ์„ ๊ฐ€์ง„ ์ „๋ ฅ์„ค๋น„๋กœ์จ, ์ „๋ ฅ๊ณ„ํ†ต์„ ๋ณดํ˜ธํ•˜๋Š” ์—ญํ• ์„ ํ•œ๋‹ค. ์ฐจ๋‹จ๊ธฐ์˜ ๊ณ ์žฅ์€ ์ฃผ๋กœ ๊ธฐ๊ณ„์  ๊ฒฐํ•จ, ์ „๊ธฐ์  ๊ณผ๋ถ€ํ•˜, ๋˜๋Š” ๋…ธํ™”๋กœ ์ธํ•ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ์ด๋Š” ์‹œ์Šคํ…œ ์ „์ฒด์— ํฐ ์˜ํ–ฅ์„ ๋ฏธ์น  ์ˆ˜ ์žˆ๋‹ค. ๋”ฐ๋ผ์„œ ์ฐจ๋‹จ๊ธฐ์˜ ์ƒํƒœ๋ฅผ ์ง€์†์ ์œผ๋กœ Monitoringํ•˜๊ณ  Inspectionํ•˜๋ฉฐ ์ ์ ˆํ•œ Test๋ฅผ ์‹ค์‹œํ•˜๋Š” ๊ฒƒ์ด ๋งค์šฐ ์ค‘์š”ํ•˜๋‹ค. ๋ฒ„์Šค๋ฐ”๋Š” ์ „๋ ฅ์„ ์—ฌ๋Ÿฌ ํšŒ๋กœ๋กœ ๋ถ„๋ฐฐํ•˜๋Š” ๋ฐ ์‚ฌ์šฉ๋˜๋Š” ์ค‘์š”ํ•œ ๋„์ฒด์ด๋‹ค. ๋ฒ„์Šค๋ฐ”์˜ ๊ณ ์žฅ์€ ์ฃผ๋กœ ๊ณผ์—ด, ๋ฌผ๋ฆฌ์  ์†์ƒ, ๋˜๋Š” ๋ถ€์ ์ ˆํ•œ ์„ค์น˜๋กœ ์ธํ•ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ์ด๋Š” ์ „๋ ฅ ๋ถ„๋ฐฐ์˜ ์ค‘๋‹จ๊ณผ ์‹ฌ๊ฐํ•œ ์ „๊ธฐ์  ๋ฌธ์ œ๋ฅผ ์ผ์œผํ‚ฌ ์ˆ˜ ์žˆ์œผ๋ฏ€๋กœ ์ง€์†์ ์ธ Monitoring๊ณผ Inspection์ด ํ•„์š”ํ•˜๋‹ค. ํŠนํžˆ, ์ ‘์†๋ถ€์™€ ๊ฐ™์€ ์ทจ์•ฝ ๋ถ€์œ„๋ฅผ ์ •๊ธฐ์ ์œผ๋กœ Inspectionํ•˜๋Š” ๊ฒƒ์ด ์ค‘์š”ํ•˜๋‹ค. ์ผ€์ด๋ธ”์€ ์ „๋ ฅ์˜ ์ „๋‹ฌ ๊ฒฝ๋กœ๋ฅผ ํ˜•์„ฑํ•˜๋ฉฐ, ๋ฐฐ์ „๋ฐ˜๊ณผ ๊ธฐํƒ€ ์ „๋ ฅ์‹œ์Šคํ…œ์˜ ์„ค๋น„ ๊ฐ„ ์ „๊ธฐ์  ์—ฐ๊ฒฐ์„ ๋‹ด๋‹นํ•œ๋‹ค. ์ผ€์ด๋ธ”์˜ ๊ณ ์žฅ์€ ์ฃผ๋กœ ์ ˆ์—ฐ ์†์ƒ, ๋ฌผ๋ฆฌ์  ๋งˆ๋ชจ ๋˜๋Š” ์™ธ๋ถ€ ํ™˜๊ฒฝ์š”์ธ์— ์˜ํ•ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ๋‹ค. ์ผ€์ด๋ธ”์˜ ๊ณ ์žฅ์€ ์ „๋ ฅ ์ „๋‹ฌ์˜ ํšจ์œจ์„ฑ์„ ์ €ํ•ดํ•˜๊ณ , ์‹ฌ๊ฐํ•œ ๊ฒฝ์šฐ ์ „๊ธฐํ™”์žฌ๋ฅผ ์ดˆ๋ž˜ํ•  ์ˆ˜ ์žˆ์–ด ์ค‘์š”ํ•œ ๊ด€๋ฆฌ ๋Œ€์ƒ์ด๋‹ค. ๋”ฐ๋ผ์„œ ์ผ€์ด๋ธ”์˜ ์ƒํƒœ๋ฅผ ์ฃผ๊ธฐ์ ์œผ๋กœ Inspectionํ•˜๊ณ , ์†์ƒ์ด ๋ฐœ๊ฒฌ๋˜๋ฉด ์ฆ‰์‹œ ๊ต์ฒดํ•˜๋Š” ๊ฒƒ์ด ํ•„์ˆ˜์ ์ด๋‹ค.

๋ฐฐ์ „๋ฐ˜์˜ Major Failure๋ฅผ ์œ ๋ฐœํ•  ์ˆ˜ ์žˆ๋Š” ์ฃผ์š” Component์ธ ์ฐจ๋‹จ๊ธฐ์™€ ๋ฒ„์Šค๋ฐ”, ๊ทธ๋ฆฌ๊ณ  ์ผ€์ด๋ธ”์—์„œ ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ๋Š” ๊ณ ์žฅ์˜ ์œ ํ˜•๊ณผ ํŠน์„ฑ์„ ์ดํ•ดํ•˜๋Š” ๊ฒƒ์€ ๋ฐฐ์ „๋ฐ˜์˜ ์‹ ๋ขฐ์„ฑ์„ ๋†’์ด๊ณ  ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•˜๋Š” ๋ฐ ํ•„์ˆ˜์ ์ด๋‹ค.

2.3 Major Failure์˜ ์œ ํ˜•

๋ณธ ์ ˆ์—์„œ๋Š” ๋ฐฐ์ „๋ฐ˜์˜ ์ฃผ์š” Component์ธ ์ฐจ๋‹จ๊ธฐ, ๋ฒ„์Šค๋ฐ”, ๊ทธ๋ฆฌ๊ณ  ์ผ€์ด๋ธ”์—์„œ ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ๋Š” Major Failure์˜ ์œ ํ˜•์„ ์„ธ๋ถ€์ ์œผ๋กœ ๊ตฌ๋ถ„ํ•˜์—ฌ ์„ค๋ช…ํ•˜์˜€๋‹ค. ์ฐจ๋‹จ๊ธฐ์—์„œ ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ๋Š” Major Failure๋ฅผ ์—ฌ์„ฏ ๊ฐ€์ง€๋กœ ๊ตฌ๋ถ„ํ•˜์˜€๋‹ค[4]. ์ฒซ์งธ, ์ฐจ๋‹จ๊ธฐ๊ฐ€ ๋ช…๋ น์— ๋”ฐ๋ผ ๊ฐœ๋ฐฉ๋˜์ง€ ์•Š๋Š” ๊ฒฝ์šฐ์ด๋‹ค. ์ด๋Š” ์ „๊ธฐ์  ํ˜น์€ ๊ธฐ๊ณ„์  ๋ฌธ์ œ๋กœ ์ธํ•ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ์ฐจ๋‹จ๊ธฐ๊ฐ€ ์ œ๋•Œ ๊ฐœ๋ฐฉ๋˜์ง€ ์•Š์œผ๋ฉด ์‹œ์Šคํ…œ์˜ ๊ณผ๋ถ€ํ•˜๋ฅผ ๋ฐฉ์ง€ํ•˜์ง€ ๋ชปํ•ด ์‹ฌ๊ฐํ•œ ์†์ƒ์„ ์ดˆ๋ž˜ํ•  ์ˆ˜ ์žˆ๋‹ค. ๋‘˜์งธ, ์ฐจ๋‹จ๊ธฐ๊ฐ€ ๋ช…๋ น์— ๋”ฐ๋ผ ํˆฌ์ž…๋˜์ง€ ์•Š๋Š” ๊ฒฝ์šฐ์ด๋‹ค. ์ด ์—ญ์‹œ ์ „๊ธฐ์  ๋˜๋Š” ๊ธฐ๊ณ„์  ๊ฒฐํ•จ์œผ๋กœ ์ธํ•ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ์ฐจ๋‹จ๊ธฐ๊ฐ€ ํˆฌ์ž…๋˜์ง€ ์•Š์œผ๋ฉด ์ •์ƒ์ ์ธ ์ „๋ ฅ ํ๋ฆ„์ด ์œ ์ง€๋˜์ง€ ์•Š์•„ ์ „๋ ฅ๊ณต๊ธ‰์— ์ง€์žฅ์„ ์ค„ ์ˆ˜ ์žˆ๋‹ค. ์…‹์งธ, ์ฐจ๋‹จ๊ธฐ๊ฐ€ ์ด๋ฏธ ํˆฌ์ž…๋œ ์ƒํƒœ์—์„œ ์—ฐ์†์ ์ด๊ฑฐ๋‚˜ ์ˆœ๊ฐ„์ ์ธ ์ „๋ฅ˜๋ฅผ ํ†ต๊ณผ์‹œํ‚ค์ง€ ๋ชปํ•˜๋Š” ๊ฒฝ์šฐ์ด๋‹ค. ์ด๋Š” ์ ‘์ด‰ ๋ถ€์œ„์˜ ๋งˆ๋ชจ๋‚˜ ์†์ƒ์œผ๋กœ ์ธํ•ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ๊ฒฐ๊ณผ์ ์œผ๋กœ ์ „๋ ฅ๊ณต๊ธ‰์˜ ๋ถˆ์•ˆ์ •์„ฑ์„ ์ดˆ๋ž˜ํ•  ์ˆ˜ ์žˆ๋‹ค. ๋„ท์งธ, ์ฐจ๋‹จ๊ธฐ๊ฐ€ ์ ˆ์—ฐ ๋งค์งˆ์„ ์œ ์ง€ํ•˜์ง€ ๋ชปํ•˜๋Š” ๊ฒฝ์šฐ์ด๋‹ค. ์ด๋Š” Housing์˜ ์—ดํ™”๋‚˜ ์†์ƒ์œผ๋กœ ์ธํ•ด ๋ฐœ์ƒํ•˜๋ฉฐ, ์ ˆ์—ฐ ๋งค์งˆ์ด ์ œ๋Œ€๋กœ ์œ ์ง€๋˜์ง€ ์•Š์œผ๋ฉด ์•„ํฌ ๋ฐฉ์ „ ๋“ฑ์˜ ์œ„ํ—˜์ด ์ฆ๊ฐ€ํ•  ์ˆ˜ ์žˆ๋‹ค. ๋‹ค์„ฏ์งธ, ์ฐจ๋‹จ๊ธฐ์˜ ์ƒํƒœ๋‚˜ ์œ„์น˜๋ฅผ ์ •ํ™•ํ•˜๊ฒŒ ํ‘œ์‹œํ•˜์ง€ ๋ชปํ•˜๋Š” ๊ฒฝ์šฐ์ด๋‹ค. ์ด๋Š” Monitoring ์‹œ์Šคํ…œ์˜ ์˜ค๋ฅ˜๋‚˜ ๋ณด์กฐ์ ‘์ ์˜ ๊ฒฐํ•จ์œผ๋กœ ์ธํ•ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ์ฐจ๋‹จ๊ธฐ์˜ ์ƒํƒœ๋ฅผ ์ •ํ™•ํžˆ ํŒŒ์•…ํ•˜์ง€ ๋ชปํ•˜๋ฉด ์ ์ ˆํ•œ ๋Œ€์‘์ด ์–ด๋ ค์›Œ์งˆ ์ˆ˜ ์žˆ๋‹ค. ์—ฌ์„ฏ์งธ, ์ฐจ๋‹จ๊ธฐ๊ฐ€ ์•ˆ์ „ํ•œ ์ž‘๋™์„ ๋ณด์žฅํ•˜์ง€ ๋ชปํ•˜๋Š” ๊ฒฝ์šฐ์ด๋‹ค. ์ด๋Š” ์„ค๊ณ„์ƒ์˜ ๋ฌธ์ œ๋‚˜ ์œ ์ง€๋ณด์ˆ˜์˜ ๋ถ€์กฑ์œผ๋กœ ์ธํ•ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ์ž‘์—…์ž์˜ ์•ˆ์ „๊ณผ ์ „๋ ฅ์„ค๋น„์˜ ์‹ ๋ขฐ์„ฑ์„ ์œ„ํ˜‘ํ•  ์ˆ˜ ์žˆ๋‹ค. ์ด์ฒ˜๋Ÿผ ์ฐจ๋‹จ๊ธฐ์˜ Major Failure๋Š” ๋‹ค์–‘ํ•œ ์›์ธ์œผ๋กœ ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ๊ฐ ๊ณ ์žฅ ์œ ํ˜•์€ ์‹œ์Šคํ…œ์˜ ์•ˆ์ •์„ฑ๊ณผ ์‹ ๋ขฐ์„ฑ์— ์‹ฌ๊ฐํ•œ ์˜ํ–ฅ์„ ๋ฏธ์น  ์ˆ˜ ์žˆ๋‹ค. ์ฐจ๋‹จ๊ธฐ์˜ Major Failure ์œ ํ˜•์„ ์ดํ•ดํ•˜๊ณ  ์ ์ ˆํžˆ ๋Œ€์‘ํ•˜๋Š” ๊ฒƒ์€ ๋ฐฐ์ „๋ฐ˜์˜ ์‹ ๋ขฐ์„ฑ์„ ์œ ์ง€ํ•˜๋Š” ๋ฐ ํ•„์ˆ˜์ ์ด๋‹ค. ๊ทธ๋ฆผ 1์—๋Š” ์•„ํฌ๋กœ ์ธํ•œ ์ฐจ๋‹จ๊ธฐ์˜ ๊ณ ์žฅ ์‚ฌ๋ก€๋ฅผ ๋‚˜ํƒ€๋‚ด์—ˆ๋‹ค[5].

๊ทธ๋ฆผ 1. ์•„ํฌ๋กœ ์ธํ•œ VCB ๊ณ ์žฅ

Fig. 1. Failure of VCB due to arcing

../../Resources/kiee/KIEE.2024.73.8.1412/fig1.png

๋ฒ„์Šค๋ฐ”์—์„œ ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ๋Š” Major Failure๋Š” ์ฃผ๋กœ ์ ˆ์—ฐ์žฌ์˜ ์†์ƒ, ๊ณผ์—ด, ์ ˆ์—ฐ ์—ดํ™”, ๋ถ€์‹, ์ž˜๋ชป๋œ ์„ค๊ณ„, ๋ถ€์ ์ ˆํ•œ ๋ฌผ์งˆ ์‚ฌ์šฉ, ๋ถ€์ ์ ˆํ•œ ์œ ์ง€๋ณด์ˆ˜ ๋“ฑ์œผ๋กœ ์ธํ•ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ๋‹ค[6]. ๋จผ์ €, ์ ˆ์—ฐ์žฌ ์†์ƒ์œผ๋กœ ์ธํ•œ ๊ณ ์žฅ์€ ์ˆ˜๋ถ„์ด๋‚˜ ๋จผ์ง€ ๋“ฑ์˜ ์ถ•์ ์— ์˜ํ•ด ๋ฒ„์Šค๋ฐ” ์ ˆ์—ฐ์žฌ์— ๊ท ์—ด์ด ์ƒ๊ธฐ๋ฉด์„œ ๋ฐœ์ƒํ•œ๋‹ค. ๋†’์€ ์™ธ๊ธฐ ์˜จ๋„์™€ ๋ฒ„์Šค๋ฐ” ์ ‘์†๋ถ€์˜ ์˜ค์—ผ๋„ ์ ˆ์—ฐ์žฌ์˜ ๊ท ์—ด์„ ์œ ๋ฐœํ•  ์ˆ˜ ์žˆ๋‹ค. ์ ˆ์—ฐ์žฌ์˜ ์†์ƒ์€ ์†์ƒ๋œ ์ ˆ์—ฐ์žฌ๋ฅผ ๊ต์ฒดํ•จ์œผ๋กœ์จ ํ•ด๊ฒฐํ•  ์ˆ˜ ์žˆ๋‹ค. ๋˜ํ•œ, ์ฃผ๊ธฐ์ ์ธ Inspection๊ณผ ์„ธ์ฒ™์„ ๊ฐ•ํ™”ํ•˜๋Š” ๊ฒƒ์ด ์ค‘์š”ํ•˜๋‹ค. ๊ณผ์—ด์€ ์ฃผ๋กœ ์ ‘์†๋ถ€์˜ ๋†’์€ ์ €ํ•ญ์œผ๋กœ ์ธํ•ด ๋ฐœ์ƒํ•œ๋‹ค. ๊ณผ์—ด์€ ์ ˆ์—ฐ๋ฌผ์˜ ์—ดํ™”๋ฅผ ์ดˆ๋ž˜ํ•˜๋ฉฐ, ๊ฒฐ๊ณผ์ ์œผ๋กœ PVC ๋ถ€์ธ  ์ ˆ์—ฐ์ฒด์—์„œ ์—ฐ๊ธฐ๊ฐ€ ๋ฐœ์ƒํ•˜๊ณ , ๊ณผ์—ด๋กœ ์ธํ•ด ์ƒ๊ฐ„ ์•„ํฌ๊ฐ€ ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ๋‹ค. ๋”ฐ๋ผ์„œ ๊ณผ์—ด ๋ฌธ์ œ๋ฅผ ๋ฐฉ์ง€ํ•˜๊ธฐ ์œ„ํ•ด ์ง€์†์ ์ธ Monitoring๊ณผ ์ฃผ๊ธฐ์ ์ธ Inspection ๋ฐ ๊ทธ์— ๋”ฐ๋ฅธ ์œ ์ง€๋ณด์ˆ˜ ์ž‘์—…์ด ํ•„์š”ํ•˜๋‹ค. ์ ˆ์—ฐ ์—ดํ™”๋Š” ์˜ค์—ผ (๋จผ์ง€, ์ด๋ฌผ์งˆ, ๋ฒŒ๋ ˆ, ์ž‘์€ ๋™๋ฌผ ๋“ฑ)์ด๋‚˜ ํ™˜๊ฒฝ์  ์š”์ธ (๋†’์€ ์Šต๋„์™€ ์—ผ๋ถ„)์œผ๋กœ ์ธํ•ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ์ด๋Š” ์žฆ์€ ์œ ์ง€๋ณด์ˆ˜์™€ ๋ถ€์‹์„ ์•ผ๊ธฐํ•  ์ˆ˜ ์žˆ๋‹ค. ๋˜ํ•œ ์ ˆ์—ฐ ์—ดํ™”๋Š” ์ฝ”๋กœ๋‚˜ ๋ฐœ์ƒ์„ ์ดˆ๋ž˜ํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ์ด๋Š” ๋ฒ„์Šค๋ฐ”์˜ ์„ฑ๋Šฅ์„ ์ €ํ•˜์‹œํ‚ฌ ์ˆ˜ ์žˆ๋‹ค. ๋”ฐ๋ผ์„œ ์ด๋ฅผ ๋ฐฉ์ง€ํ•˜๊ธฐ ์œ„ํ•ด ๊ทธ๋ฆฌ์Šค, ์ฝ”ํŒ…, ๋‚ด๋ถ€์‹์„ฑ ๋ฌผ์งˆ์„ ์‚ฌ์šฉํ•˜๋Š” ๊ฒƒ์ด ํ•„์š”ํ•˜๋‹ค. ๋ถ€์ ์ ˆํ•œ ์„ค๊ณ„์™€ ๋ถ€์ ์ ˆํ•œ ๋ฌผ์งˆ ์‚ฌ์šฉ, ๊ทธ๋ฆฌ๊ณ  ๋ถ€์ ์ ˆํ•œ ์œ ์ง€๋ณด์ˆ˜๋Š” ๋ฒ„์Šค๋ฐ” ๊ณ ์žฅ์˜ ์›์ธ์ด ๋  ์ˆ˜ ์žˆ๋‹ค. ํŠนํžˆ, ์ ‘์† ๋ถˆ๋Ÿ‰์€ ์ฃผ๋ณ€ ๊ณต๊ธฐ์˜ ์ด์˜จํ™”๋กœ ์ธํ•œ ๊ณ ์žฅ์„ ์œ ๋ฐœํ•  ์ˆ˜ ์žˆ๋‹ค. ๋ฒ„์Šค๋ฐ”์˜ Major Failure๋Š” ๋‹ค์–‘ํ•œ ์›์ธ์œผ๋กœ ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ๊ทธ๋ฆผ 2์—๋Š” ์•„ํฌ๋กœ ์ธํ•œ ๋ฒ„์Šค๋ฐ”์˜ ๊ณ ์žฅ ์‚ฌ๋ก€๋ฅผ ๋‚˜ํƒ€๋‚ด์—ˆ๋‹ค[5].

๊ทธ๋ฆผ 2. ์•„ํฌ๋กœ ์ธํ•œ ๋ฒ„์Šค๋ฐ” ๊ณ ์žฅ

Fig. 2. Failure of busbars due to arcing

../../Resources/kiee/KIEE.2024.73.8.1412/fig2.png

์ผ€์ด๋ธ”์˜ Major Failure๋Š” ์ฃผ๋กœ ์ ˆ์—ฐ ์†์ƒ, ๊ณผ์—ด, ๋ฌผ๋ฆฌ์  ์†์ƒ, ํ™˜๊ฒฝ์  ์š”์ธ, ๋ถ€์ ์ ˆํ•œ ์„ค์น˜ ๋ฐ ์œ ์ง€๋ณด์ˆ˜ ๋“ฑ์œผ๋กœ ์ธํ•ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ๋‹ค[7]. ์ ˆ์—ฐ ์†์ƒ์€ ์ผ€์ด๋ธ” ๊ณ ์žฅ์˜ ๊ฐ€์žฅ ์ผ๋ฐ˜์ ์ธ ์›์ธ ์ค‘ ํ•˜๋‚˜์ด๋‹ค. ์ฃผ๋กœ ๋…ธํ™”, ๊ณผ๋„ํ•œ ์ „๊ธฐ์  ์ŠคํŠธ๋ ˆ์Šค, ๋ฌผ๋ฆฌ์  ์†์ƒ, ๊ทธ๋ฆฌ๊ณ  ํ™˜๊ฒฝ์  ์š”์ธ (์Šต๋„, ์—ผ๋ถ„ ๋“ฑ)์œผ๋กœ ์ธํ•ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ๋‹ค. ์ ˆ์—ฐ์ด ์†์ƒ๋˜๋ฉด ์•„ํฌ๋‚˜ ๋‹จ๋ฝ์ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ์ด๋Š” ์‹œ์Šคํ…œ ์ „์ฒด์˜ ์ „๋ ฅ๊ณต๊ธ‰์— ์‹ฌ๊ฐํ•œ ์˜ํ–ฅ์„ ๋ฏธ์น  ์ˆ˜ ์žˆ๋‹ค. ์ง€์†์ ์ธ Monitoring๊ณผ Inspection์„ ํ†ตํ•ด ์ด๋Ÿฌํ•œ ๋ฌธ์ œ๋ฅผ ์˜ˆ๋ฐฉํ•  ์ˆ˜ ์žˆ๋‹ค. ๊ณผ์—ด์€ ์ผ€์ด๋ธ” ๊ณ ์žฅ์˜ ๋˜ ๋‹ค๋ฅธ ์ฃผ์š” ์›์ธ์ด๋‹ค. ์ผ€์ด๋ธ”์ด ๊ณผ๋„ํ•œ ์ „๋ฅ˜๋ฅผ ํ†ต์ „ํ•˜๊ฑฐ๋‚˜, ์ ‘์†๋ถ€์˜ ์ €ํ•ญ์ด ๋†’์•„์ง€๋ฉด ์ผ€์ด๋ธ”์ด ๊ณผ์—ด๋  ์ˆ˜ ์žˆ๋‹ค. ๊ณผ์—ด์€ ์ผ€์ด๋ธ”์˜ ์ ˆ์—ฐ์„ ์—ดํ™”์‹œ์ผœ ์ ˆ์—ฐ ์„ฑ๋Šฅ์„ ์ €ํ•˜์‹œํ‚ฌ ์ˆ˜ ์žˆ์œผ๋ฉฐ, ์‹ฌ๊ฐํ•œ ๊ฒฝ์šฐ์—๋Š” ์ผ€์ด๋ธ”์˜ ํ™”์žฌ๋ฅผ ์ดˆ๋ž˜ํ•  ์ˆ˜ ์žˆ๋‹ค. ์ ์ ˆํ•œ ์ผ€์ด๋ธ” ์šฉ๋Ÿ‰ ์„ ์ •๊ณผ ์ ‘์†๋ถ€์˜ ์ง€์†์ ์ธ Monitoring๊ณผ ์ •๊ธฐ์ ์ธ Inspection์„ ํ†ตํ•ด ๊ณผ์—ด ๋ฌธ์ œ๋ฅผ ์˜ˆ๋ฐฉํ•  ์ˆ˜ ์žˆ๋‹ค. ๋ฌผ๋ฆฌ์  ์†์ƒ์€ ์ผ€์ด๋ธ”์˜ ์™ธ๋ถ€ ์ถฉ๊ฒฉ, ์••๋ ฅ, ๋˜๋Š” ๋ถ€์ ์ ˆํ•œ ์ทจ๊ธ‰์œผ๋กœ ์ธํ•ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ๋‹ค. ์ด๋Ÿฌํ•œ ์†์ƒ์€ ์ผ€์ด๋ธ”์˜ ์ „๊ธฐ์  ์„ฑ๋Šฅ์„ ์ €ํ•˜์‹œํ‚ฌ ๋ฟ๋งŒ ์•„๋‹ˆ๋ผ, ์ ˆ์—ฐ ํŠน์„ฑ์„ ์†์ƒ์‹œ์ผœ ์ „๊ธฐ์  ๊ณ ์žฅ์„ ์œ ๋ฐœํ•  ์ˆ˜ ์žˆ๋‹ค. ๋”ฐ๋ผ์„œ ์„ค์น˜ ์‹œ ์ผ€์ด๋ธ” ๋ณดํ˜ธ ์žฅ์น˜๋ฅผ ์‚ฌ์šฉํ•˜๊ณ , ์„ค์น˜ ํ›„์—๋Š” ์™ธ๋ถ€ ์ถฉ๊ฒฉ์„ ํ”ผํ•˜๋Š” ๊ฒƒ์ด ์ค‘์š”ํ•˜๋‹ค. ํ™˜๊ฒฝ์  ์š”์ธ์€ ์ผ€์ด๋ธ” ๊ณ ์žฅ์˜ ๋˜ ๋‹ค๋ฅธ ์ค‘์š”ํ•œ ์›์ธ์ด๋‹ค. ์Šต๊ธฐ, ์—ผ๋ถ„, ํ™”ํ•™ ๋ฌผ์งˆ ๋“ฑ์˜ ํ™˜๊ฒฝ์  ์š”์ธ์€ ์ผ€์ด๋ธ”์˜ ์ ˆ์—ฐ๊ณผ ๋„์ฒด๋ฅผ ๋ถ€์‹์‹œํ‚ฌ ์ˆ˜ ์žˆ๋‹ค. ์ด๋Š” ์ผ€์ด๋ธ”์˜ ์„ฑ๋Šฅ์„ ์ €ํ•˜์‹œํ‚ฌ ๋ฟ๋งŒ ์•„๋‹ˆ๋ผ, ์ „๊ธฐ์  ๊ณ ์žฅ์„ ์œ ๋ฐœํ•  ์ˆ˜ ์žˆ๋‹ค. ์ผ€์ด๋ธ” Tray์™€ Duct์˜ ์ ์ ˆํ•œ ์„ค๊ณ„์™€ ์œ ์ง€๋ณด์ˆ˜๋ฅผ ํ†ตํ•ด ํ™˜๊ฒฝ์  ์š”์ธ์œผ๋กœ ์ธํ•œ ์†์ƒ์„ ์ตœ์†Œํ™”ํ•  ์ˆ˜ ์žˆ๋‹ค. ๋ถ€์ ์ ˆํ•œ ์„ค์น˜ ๋ฐ ์œ ์ง€๋ณด์ˆ˜๋Š” ์ผ€์ด๋ธ” ๊ณ ์žฅ์˜ ์ฃผ์š” ์›์ธ ์ค‘ ํ•˜๋‚˜์ด๋‹ค. ์ผ€์ด๋ธ”์ด ๋ถ€์ ์ ˆํ•˜๊ฒŒ ์„ค์น˜๋˜๊ฑฐ๋‚˜, ์ ‘์†๋ถ€๊ฐ€ ์ œ๋Œ€๋กœ ์กฐ์—ฌ์ง€์ง€ ์•Š์œผ๋ฉด ์ ‘์† ๋ถˆ๋Ÿ‰์œผ๋กœ ์ธํ•œ ๊ณผ์—ด์ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ๋‹ค. ์ผ€์ด๋ธ”์˜ ์„ค์น˜ ์ ˆ์ฐจ๋ฅผ ์ค€์ˆ˜ํ•˜๊ณ , ์ง€์†์ ์ธ Monitoring๊ณผ ์ •๊ธฐ์ ์ธ Inspection ๋ฐ ์ ์ ˆํ•œ ์œ ์ง€๋ณด์ˆ˜๋ฅผ ํ†ตํ•ด ์ผ€์ด๋ธ”์˜ ์‹ ๋ขฐ์„ฑ์„ ์œ ์ง€ํ•  ์ˆ˜ ์žˆ๋‹ค. ์ผ€์ด๋ธ”์˜ Major Failure๋Š” ๋‹ค์–‘ํ•œ ์›์ธ์œผ๋กœ ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ๊ฐ ๊ณ ์žฅ์€ ์‹œ์Šคํ…œ์˜ ์•ˆ์ •์„ฑ๊ณผ ์‹ ๋ขฐ์„ฑ์— ์‹ฌ๊ฐํ•œ ์˜ํ–ฅ์„ ๋ฏธ์น  ์ˆ˜ ์žˆ๋‹ค. ๊ทธ๋ฆผ 3์—๋Š” ์•„ํฌ๋กœ ์ธํ•œ ๊ณ ์žฅ์˜ ์‚ฌ๋ก€๋ฅผ ๋‚˜ํƒ€๋‚ด์—ˆ๋‹ค[5].

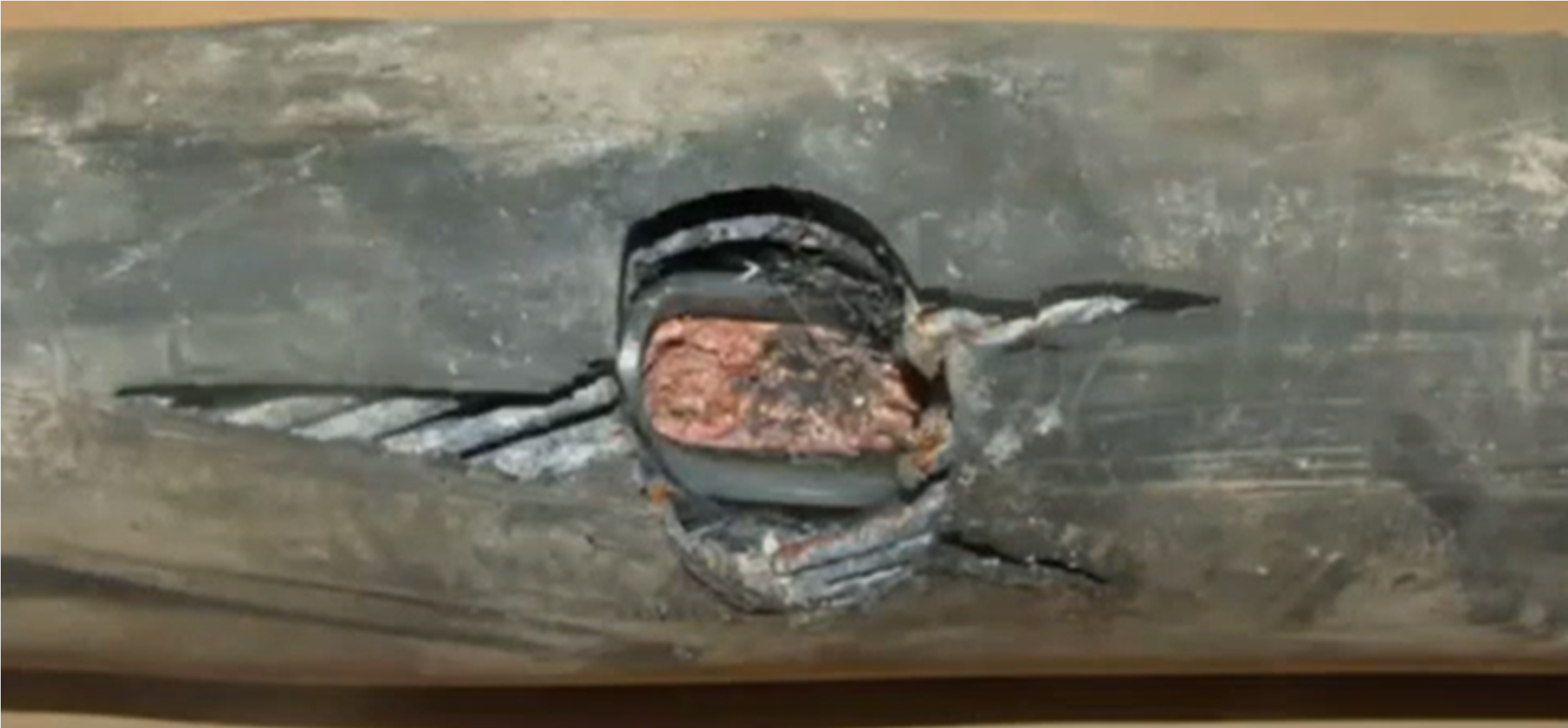

๊ทธ๋ฆผ 3. ์•„ํฌ๋กœ ์ธํ•œ ์ผ€์ด๋ธ” ๊ณ ์žฅ

Fig. 3. Failure of cable due to arcing

../../Resources/kiee/KIEE.2024.73.8.1412/fig3.png

3. ๋ฐฐ์ „๋ฐ˜ ์ž์‚ฐ๊ด€๋ฆฌ์˜ ํ•ด์™ธ ์‚ฌ๋ก€

๋ณธ ์žฅ์—์„œ๋Š” ํ•ด์™ธ ์„ ์ง„ ์ œ์กฐ์‚ฌ๋“ค์ด ๊ฐœ๋ฐœํ•˜๊ณ  ์žˆ๋Š” ๋ฐฐ์ „๋ฐ˜์˜ ์ž์‚ฐ๊ด€๋ฆฌ ํ˜„ํ™ฉ์— ๋Œ€ํ•ด ๋‹ค๋ฃจ์—ˆ๋‹ค. ์ฃผ์š” ์ œ์กฐ์‚ฌ๋“ค์ด ๊ฐœ๋ฐœํ•œ ์ž์‚ฐ๊ด€๋ฆฌ ํ”Œ๋žซํผ์˜ ์ข…๋ฅ˜์™€ ๊ฐ ํ”Œ๋žซํผ์˜ ํŠน์ง•์„ ์ค‘์‹ฌ์œผ๋กœ ๊ธฐ์ˆ ํ•˜์˜€๋‹ค. ์ด๋Ÿฌํ•œ ํ”Œ๋žซํผ๋“ค์€ ๋ฐฐ์ „๋ฐ˜์˜ ์ƒํƒœ๋ฅผ ๊ณ ๋ คํ•œ ํƒ„๋ ฅ์ ์ธ ์œ ์ง€๋ณด์ˆ˜๋ฅผ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜์˜ ์‹ ๋ขฐ์„ฑ์„ ๋†’์ด๊ณ , ํšจ์œจ์ ์ธ ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ๊ฐ€๋Šฅํ•˜๊ฒŒ ํ•˜๋ฉฐ, ์‹œ์Šคํ…œ์˜ ๊ฐ€๋™์‹œ๊ฐ„์„ ๊ทน๋Œ€ํ™”ํ•˜๋Š” ๋ฐ ๋ชฉ์ ์ด ์žˆ๋‹ค. ๋˜ํ•œ, ์ฃผ์š” Monitoring ํ•ญ๋ชฉ๊ณผ ํ‰๊ฐ€ ๋ฐฉ๋ฒ•์„ ํ†ตํ•ด ์ž์‚ฐ์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ํ‰๊ฐ€ํ•˜๊ณ  ์ž”์—ฌ์ˆ˜๋ช…์„ ์‹œ๊ฐํ™”ํ•˜์—ฌ Inspection์˜ ์ฃผ๊ธฐ๋ฅผ ์ตœ์ ํ™”ํ•˜๊ณ  ์žˆ๋‹ค.

๊ตญ๋‚ด์—์„œ๋Š” ์ „๋ ฅ์„ค๋น„์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ํ‰๊ฐ€ํ•˜๊ธฐ ์œ„ํ•ด Inspection์„ ๊ณ ์ •์ ์ธ ์ฃผ๊ธฐ๋กœ ์‹ค์‹œํ•˜๊ณ  ์žˆ๋Š”๋ฐ, ์ด๋Ÿฌํ•œ ๊ณ ์ •์  ์ฃผ๊ธฐ๋Š” ๋Œ€์ฒด๋กœ 1970~1980๋…„๋Œ€์˜ ํ™˜๊ฒฝ ์ƒํ™ฉ์—์„œ ๊ฒฐ์ •๋œ ๊ฒƒ์ด์–ด์„œ ํ˜„์‹ค์ ์ด์ง€ ์•Š์€ ๊ฒฝ์šฐ๊ฐ€ ๋งŽ๋‹ค. ๋ฐ˜๋ฉด, ์™ธ๊ตญ์—์„œ๋Š” Monitoring๊ณผ Inspection ๋ฐ Test์˜ ๊ฒฐ๊ณผ๋ฅผ ๋ฐ”ํƒ•์œผ๋กœ ์ž์‚ฐ์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ์ •๋Ÿ‰์ ์œผ๋กœ ํ‰๊ฐ€ํ•จ์œผ๋กœ์จ Inspection์˜ ์ฃผ๊ธฐ๋ฅผ ํƒ„๋ ฅ์ ์œผ๋กœ ์กฐ์ ˆํ•˜๊ณ  ์žˆ๋‹ค[8]. ๋”ฐ๋ผ์„œ ๊ตญ๋‚ด์—์„œ๋„ ํ•ด์™ธ์—์„œ ์ˆ˜ํ–‰ํ•˜๋Š” ๋ฐฉ์‹์ฒ˜๋Ÿผ ํƒ„๋ ฅ์ ์ธ ์œ ์ง€๋ณด์ˆ˜ ์ฃผ๊ธฐ๋ฅผ ๋„์ถœํ•  ์ˆ˜ ์žˆ๋Š” ์ž์‚ฐ๊ด€๋ฆฌ ๊ธฐ๋ฒ•์„ ๋„์ž…ํ•  ํ•„์š”๊ฐ€ ์žˆ๋‹ค. ์ด๋Ÿฌํ•œ ์ ‘๊ทผ์„ ํ†ตํ•ด ์ž์‚ฐ์˜ ์‹ ๋ขฐ์„ฑ์„ ๋†’์ด๊ณ , ํšจ์œจ์ ์ธ ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ๊ฐ€๋Šฅํ•˜๊ฒŒ ํ•˜๋ฉฐ, ์šด์˜๋น„์šฉ ์ ˆ๊ฐ๊ณผ ์‹œ์Šคํ…œ์˜ ๊ฐ€๋™์‹œ๊ฐ„์„ ๊ทน๋Œ€ํ™”ํ•  ์ˆ˜ ์žˆ์„ ๊ฒƒ์ด๋‹ค. ๋‹ค์Œ์œผ๋กœ๋Š” ABB, Schneider Electric, GE, Siemens, ๊ทธ๋ฆฌ๊ณ  Hitachi ๋“ฑ 5๊ฐœ์˜ ํ•ด์™ธ ์„ ์ง„ ๋ฐฐ์ „๋ฐ˜ ์ œ์กฐ์‚ฌ์˜ ๋ฐฐ์ „๋ฐ˜ ์ž์‚ฐ๊ด€๋ฆฌ ํ”Œ๋žซํผ ๊ฐœ๋ฐœ ํ˜„ํ™ฉ์„ ์กฐ์‚ฌํ•˜์—ฌ ์š”์•ฝํ•˜์˜€๋‹ค.

3.1 ABB - SWICOM

ABB๋Š” SWICOM (Switchgear Condition Monitoring) ํ”Œ๋žซํผ์„ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜์˜ ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ์ง€์›ํ•˜๊ณ  ์žˆ๋‹ค[9]. SWICOM์€ ๋ฐฐ์ „๋ฐ˜์˜ ์ƒํƒœ๋ฅผ ์‹ค์‹œ๊ฐ„์œผ๋กœ Monitoringํ•˜๊ณ , ์ข…ํ•ฉ์  ๋ฐ์ดํ„ฐ ๋ถ„์„์„ ํ†ตํ•ด ์˜ˆ์ธก ์œ ์ง€๋ณด์ˆ˜๋ฅผ ๊ฐ€๋Šฅํ•˜๊ฒŒ ํ•˜๋Š” ๋””์ง€ํ„ธ ์†”๋ฃจ์…˜์ด๋‹ค. SWICOM์€ ์˜จ๋„, ์Šต๋„, ์ „๋ฅ˜, ์ „์••, ๋ถ€๋ถ„๋ฐฉ์ „ ๋“ฑ์˜ ๋ฐ์ดํ„ฐ๋ฅผ ์‹ค์‹œ๊ฐ„์œผ๋กœ Monitoringํ•˜๋ฉฐ, ์ด์™€ ๊ฐ™์€ ๋ฐ์ดํ„ฐ ๋ถ„์„ ๊ฒฐ๊ณผ๋ฅผ ๋ฐ”ํƒ•์œผ๋กœ ๋ฐฐ์ „๋ฐ˜์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ์˜ˆ์ธกํ•˜๊ณ , ํ•„์š”ํ•œ ์œ ์ง€๋ณด์ˆ˜๋ฅผ ์‚ฌ์ „์— ๊ณ„ํšํ•˜์—ฌ ๊ณ ์žฅ์„ ์˜ˆ๋ฐฉํ•  ์ˆ˜ ์žˆ๋„๋ก ์ง€์›ํ•œ๋‹ค. ๋˜ํ•œ, ์›๊ฒฉ ์ง„๋‹จ์„ ํ†ตํ•ด ์ „๋ฌธ๊ฐ€๋“ค์ด ์‹ ์†ํ•˜๊ฒŒ ๋ฌธ์ œ๋ฅผ ํ•ด๊ฒฐํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ์‚ฌ์šฉ์ž ์นœํ™”์ ์ธ ์ธํ„ฐํŽ˜์ด์Šค๋ฅผ ํ†ตํ•ด ์‹ค์‹œ๊ฐ„ ๋ฐ์ดํ„ฐ์™€ ๋ถ„์„ ๊ฒฐ๊ณผ๋ฅผ ์‰ฝ๊ฒŒ ํ™•์ธํ•  ์ˆ˜ ์žˆ๋‹ค. SWICOM์€ ํ˜„์žฌ์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฟ๋งŒ ์•„๋‹ˆ๋ผ, ๋ฏธ๋ž˜์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ํ‰๊ฐ€ํ•˜์—ฌ ์ž”์—ฌ์ˆ˜๋ช… ๋“ฑ์„ ์‹œ๊ฐํ™”ํ•  ์ˆ˜ ์žˆ๋‹ค. ์ด๋ฅผ ํ†ตํ•ด ์˜ˆ๊ธฐ์น˜ ์•Š์€ ๊ณ ์žฅ์„ ๋ฐฉ์ง€ํ•˜๊ณ , ๋ฐฐ์ „๋ฐ˜์˜ ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•˜์—ฌ ์ž์‚ฐ์˜ TCO (Total Cost of Ownership)๋ฅผ ์ ˆ๊ฐํ•  ์ˆ˜ ์žˆ๋„๋ก ์ง€์›ํ•œ๋‹ค. ๋˜ํ•œ ๊ฑด์ „๋„ ์ƒํƒœ ํ‰๊ฐ€๋ฅผ ํ†ตํ•ด Inspection์˜ ์ฃผ๊ธฐ๋ฅผ ํƒ„๋ ฅ์ ์œผ๋กœ ์กฐ์ ˆํ•  ์ˆ˜ ์žˆ๋„๋ก ํ•จ์œผ๋กœ์จ ์ž์‚ฐ๊ด€๋ฆฌ์˜ ํšจ์œจ์„ฑ์„ ๊ทน๋Œ€ํ™”ํ•  ์ˆ˜ ์žˆ๋‹ค. CBRM ๊ธฐ๋ฒ•์„ ํ™œ์šฉํ•˜์—ฌ ์ „๋ ฅ์„ค๋น„์˜ ์ƒํƒœ๋ฅผ ์„ผ์„œ๋กœ Monitoringํ•˜๊ณ , ์ด๋ฅผ ํ†ตํ•ด ๊ฑด์ „๋„ ์ƒํƒœ์™€ ์œ„ํ—˜๋„๋ฅผ ์ข…ํ•ฉ์ ์œผ๋กœ ํ‰๊ฐ€ํ•œ๋‹ค. ๋˜ํ•œ, ์ด๋Ÿฌํ•œ ํ‰๊ฐ€๋ฅผ ๋ฐ”ํƒ•์œผ๋กœ ํšจ๊ณผ์ ์ธ ์œ„ํ—˜๋„ ์™„ํ™” ๋ฐฉ๋ฒ•์„ ์ œ์‹œํ•จ์œผ๋กœ์จ ๊ทธ๋ฆผ 4์™€ ๊ฐ™์ด ์˜ˆ์ธก ๊ฐ€๋Šฅํ•œ ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ์ˆ˜ํ–‰ํ•  ์ˆ˜ ์žˆ๋„๋ก ๋ฐœ์ „ํ•˜์˜€์œผ๋ฉฐ, ์ด๋ฅผ ์ง€์›ํ•˜๊ณ  ์žˆ๋‹ค.

๊ทธ๋ฆผ 4. ์ž์‚ฐ๊ด€๋ฆฌ ๊ธฐ๋ฒ•์˜ ๋ฐœ์ „

Fig. 4. Development of asset management techniques

../../Resources/kiee/KIEE.2024.73.8.1412/fig4.png

3.2 Schneider Electric - EcoStruxure

Schneider Electric์€ EcoStruxure ํ”Œ๋žซํผ์„ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜ ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ์ง„ํ–‰ํ•˜๊ณ  ์žˆ๋‹ค[10]. EcoStruxure๋Š” IoT (Internet of Things) ๊ธฐ์ˆ ์„ ํ™œ์šฉํ•˜์—ฌ ์Šค๋งˆํŠธ ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ์ง€์›ํ•˜๋ฉฐ, ๋‹ค์–‘ํ•œ IoT ๋””๋ฐ”์ด์Šค์™€์˜ ํ†ตํ•ฉ์„ ํ†ตํ•ด ์‹ค์‹œ๊ฐ„ ๋ฐ์ดํ„ฐ ์ˆ˜์ง‘ ๋ฐ ๋ถ„์„์„ ์ˆ˜ํ–‰ํ•œ๋‹ค. ๊ณ ๊ฐ์˜ ์š”๊ตฌ์— ๋งž์ถฐ ์œ ์—ฐํ•˜๊ฒŒ ํ™•์žฅ ๊ฐ€๋Šฅํ•œ ์†”๋ฃจ์…˜์„ ์ œ๊ณตํ•˜๊ณ , ๊ฐ•ํ™”๋œ ์‚ฌ์ด๋ฒ„ ๋ณด์•ˆ ๊ธฐ๋Šฅ์„ ํ†ตํ•ด ์‹œ์Šคํ…œ์˜ ์•ˆ์ „์„ฑ์„ ๋ณด์žฅํ•œ๋‹ค. ์—๋„ˆ์ง€ ๊ด€๋ฆฌ์™€ ์ž์‚ฐ์˜ ์„ฑ๋Šฅ ์ตœ์ ํ™”๋ฅผ ํ†ตํ•ด ์šด์˜ ํšจ์œจ์„ฑ์„ ๊ทน๋Œ€ํ™”ํ•  ์ˆ˜ ์žˆ๋‹ค. ์ฃผ์š” Monitoring ํ•ญ๋ชฉ์œผ๋กœ๋Š” ์˜จ๋„, ์Šต๋„, ์—๋„ˆ์ง€ ์†Œ๋น„, ๋ถ€ํ•˜์ƒํƒœ, ์ „๋ ฅํ’ˆ์งˆ ๋“ฑ์ด ์žˆ๋‹ค. EcoStruxure๋Š” Monitoring๊ณผ Inspection, ๊ทธ๋ฆฌ๊ณ  Test ๋“ฑ์„ ํ†ตํ•ด ํ˜„์žฌ์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ํ‰๊ฐ€ํ•  ๋ฟ๋งŒ ์•„๋‹ˆ๋ผ, ๋ฏธ๋ž˜์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ํ‰๊ฐ€ํ•˜์—ฌ ์ž”์—ฌ์ˆ˜๋ช… ๋“ฑ์„ ์‹œ๊ฐํ™”ํ•  ์ˆ˜ ์žˆ๋‹ค. ์ด๋ฅผ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜์˜ ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•˜๊ณ , Inspection ์ฃผ๊ธฐ๋ฅผ ํƒ„๋ ฅ์ ์œผ๋กœ ์กฐ์ ˆํ•˜์—ฌ ์ž์‚ฐ์˜ TCO๋ฅผ ์ตœ์ ํ™”ํ•˜๋Š” ์ž์‚ฐ๊ด€๋ฆฌ ์„œ๋น„์Šค๋ฅผ ์ œ๊ณตํ•˜๊ณ  ์žˆ๋‹ค. ๊ทธ๋ฆผ 5์—๋Š” Schneider Electric์ด ๊ณต๊ฐœํ•œ ๋ฐฐ์ „๋ฐ˜ ์ž์‚ฐ๊ด€๋ฆฌ ํ”Œ๋žซํผ์˜ ๊ณ„์ธต์  ๊ตฌ์กฐ๋ฅผ ๋‚˜ํƒ€๋‚ด์—ˆ๋‹ค.

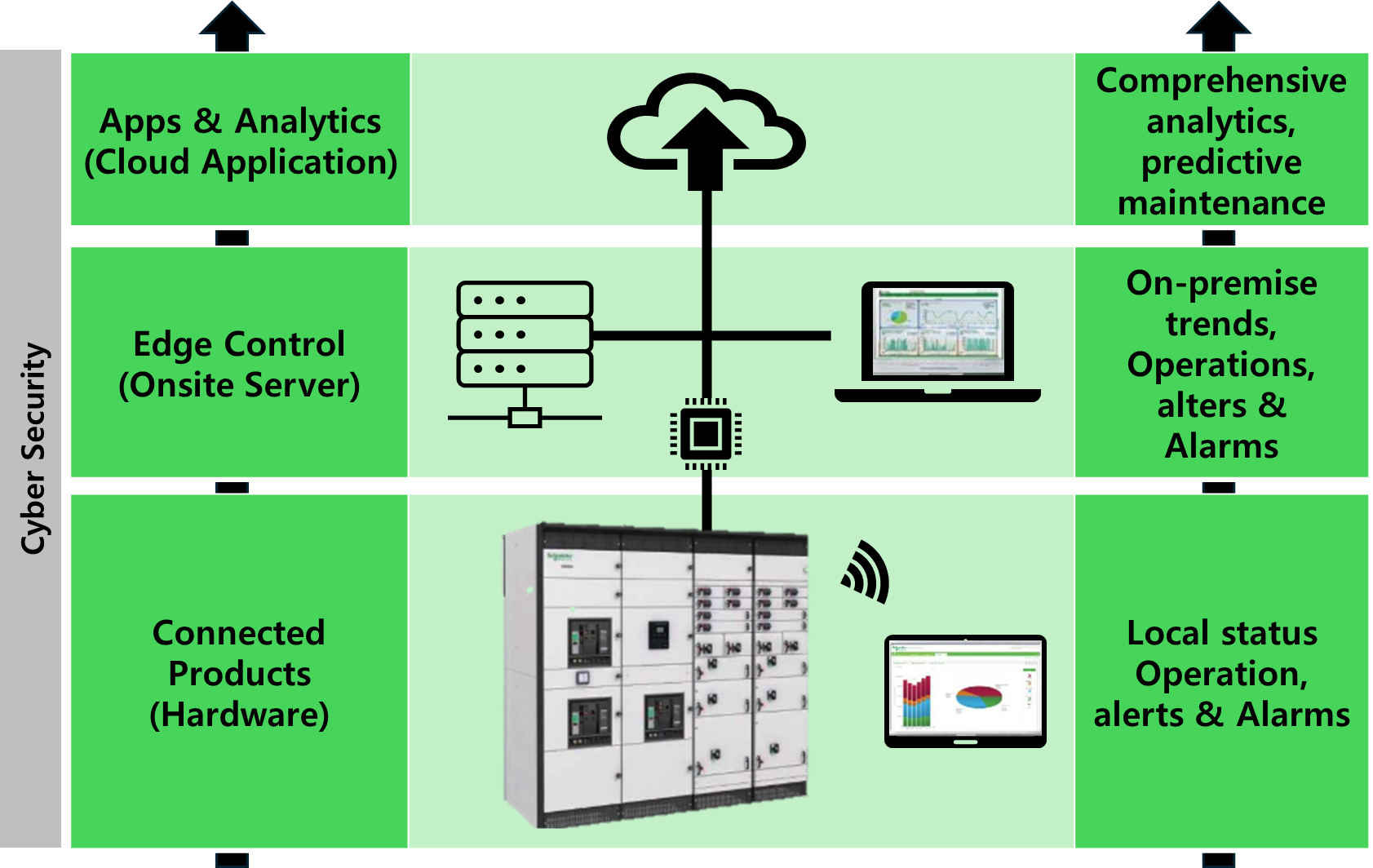

๊ทธ๋ฆผ 5. ๋ฐฐ์ „๋ฐ˜ ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ์œ„ํ•œ ๊ณ„์ธต ๊ตฌ์กฐ

Fig. 5. Hierarchical structure for switchgear asset management

../../Resources/kiee/KIEE.2024.73.8.1412/fig5.png

3.3 GE โ€“ Energy APM

GE๋Š” Energy APM (Asset Performance Management) ํ”Œ๋žซํผ์„ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜์˜ ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ์ง€์›ํ•˜๊ณ  ์žˆ๋‹ค[11]. Energy APM์€ ์ž์‚ฐ์˜ ์„ฑ๋Šฅ์„ ๊ด€๋ฆฌํ•˜๊ณ , ์˜ˆ์ธก ์œ ์ง€๋ณด์ˆ˜๋ฅผ ํ†ตํ•ด ์ž์‚ฐ์˜ ๊ฐ€์šฉ์„ฑ์„ ๋†’์ธ๋‹ค. ์ž์‚ฐ์˜ ์‹ค์‹œ๊ฐ„ ์„ฑ๋Šฅ ๋ฐ์ดํ„ฐ๋ฅผ ์ˆ˜์ง‘ํ•˜๊ณ  ๋ถ„์„ํ•˜์—ฌ ์šด์˜ ์ƒํƒœ๋ฅผ ์ตœ์ ํ™”ํ•˜๋ฉฐ, ์˜ˆ์ธก ๋ถ„์„ ๋„๊ตฌ๋ฅผ ํ†ตํ•ด ์ž์‚ฐ์˜ ๊ณ ์žฅ ๊ฐ€๋Šฅ์„ฑ์„ ์˜ˆ์ธกํ•จ์œผ๋กœ์จ ์‚ฌ์ „์— ์œ ์ง€๋ณด์ˆ˜๋ฅผ ์ˆ˜ํ–‰ํ•  ์ˆ˜ ์žˆ๋„๋ก ์ง€์›ํ•œ๋‹ค. ์ด๋ฅผ ํ†ตํ•ด ๋ถˆํ•„์š”ํ•œ ์œ ์ง€๋ณด์ˆ˜ ๋น„์šฉ์„ ์ ˆ๊ฐํ•˜๊ณ , ์ž์‚ฐ์˜ ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•  ์ˆ˜ ์žˆ๋‹ค. ์ฃผ์š” Monitoring ํ•ญ๋ชฉ์œผ๋กœ๋Š” ์ง„๋™, ์˜จ๋„, ์ „๋ฅ˜, ์ „์••, ๋ถ€๋ถ„๋ฐฉ์ „ ๋“ฑ์ด ์žˆ๋‹ค. Energy APM์€ ํ˜„์žฌ์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ํ‰๊ฐ€ํ•˜๊ณ , ๋ฏธ๋ž˜์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ์˜ˆ์ธกํ•˜์—ฌ ์ž”์—ฌ์ˆ˜๋ช…์„ ์‹œ๊ฐํ™”ํ•  ์ˆ˜ ์žˆ๋‹ค. ์ด๋ฅผ ํ†ตํ•ด Inspection ์ฃผ๊ธฐ๋ฅผ ์ตœ์ ํ™”ํ•˜๊ณ , ๋ฐฐ์ „๋ฐ˜์˜ ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•˜๋ฉฐ TCO๋ฅผ ์ ˆ๊ฐํ•˜๋Š” ์ž์‚ฐ๊ด€๋ฆฌ ์„œ๋น„์Šค๋ฅผ ์ œ๊ณตํ•˜๊ณ  ์žˆ๋‹ค. GE์˜ Energy APM์€ ์ž์‚ฐ์˜ ์‹ ๋ขฐ์„ฑ์„ ๊ฐ•ํ™”ํ•˜๊ณ , ์šด์˜์˜ ํˆฌ๋ช…์„ฑ์„ ๋†’์—ฌ ์ž์‚ฐ๊ด€๋ฆฌ์˜ ํšจ์œจ์„ฑ์„ ๊ทน๋Œ€ํ™”ํ•˜๋Š” ๋ฐ ์ค‘์ ์„ ๋‘๊ณ  ์žˆ๋‹ค. ๊ทธ๋ฆผ 6์—๋Š” GE์˜ ์ž์‚ฐ Health Index ๋ถ„์„ ๋ชจ๋ธ์˜ ๊ตฌ์กฐ๋ฅผ ๋‚˜ํƒ€๋‚ด์—ˆ๋‹ค.

๊ทธ๋ฆผ 6. Health Index ๋ถ„์„ ๋ชจ๋ธ ๊ตฌ์กฐ

Fig. 6. Structure of the health index analysis model

../../Resources/kiee/KIEE.2024.73.8.1412/fig6.png

3.4 Siemens - Sensgear

Siemens๋Š” Sensgear ํ”Œ๋žซํผ์„ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜์˜ ์ž์‚ฐ๊ด€๋ฆฌ ์„œ๋น„์Šค๋ฅผ ์ง€์›ํ•˜๊ณ  ์žˆ๋‹ค[12]. Sensgear๋Š” ๋””์ง€ํ„ธ ์†”๋ฃจ์…˜์„ ์ œ๊ณตํ•จ์œผ๋กœ์จ ์ž์‚ฐ์˜ ์šด์˜ ํšจ์œจ์„ฑ์„ ๋†’์ด๊ณ , ๋ฐ์ดํ„ฐ ๊ธฐ๋ฐ˜ ์˜์‚ฌ๊ฒฐ์ •์„ ์ง€์›ํ•œ๋‹ค. Sensgear๋Š” ์ž์‚ฐ์˜ ๋””์ง€ํ„ธ ํŠธ์œˆ์„ ์ƒ์„ฑํ•˜์—ฌ ๊ฐ€์ƒ ํ™˜๊ฒฝ์—์„œ ์ž์‚ฐ์˜ ์ƒํƒœ๋ฅผ Monitoringํ•˜๊ณ  ๋ถ„์„ํ•˜๋ฉฐ, ๋‹ค์–‘ํ•œ ๋ฐ์ดํ„ฐ ์†Œ์Šค๋ฅผ ํ†ตํ•ฉํ•˜์—ฌ ์ข…ํ•ฉ์ ์ธ ๋ฐ์ดํ„ฐ ๋ถ„์„์„ ๊ฐ€๋Šฅํ•˜๊ฒŒ ํ•œ๋‹ค. AI (Artificial Intelligence)์™€ ์—ฌ๋Ÿฌ ๋ถ„์„ ๋„๊ตฌ๋ฅผ ํ™œ์šฉํ•˜์—ฌ ์ž์‚ฐ์˜ ์ƒํƒœ๋ฅผ ์˜ˆ์ธกํ•˜๊ณ  ์ตœ์ ์˜ ์œ ์ง€๋ณด์ˆ˜ ์‹œ์ ์„ ๊ฒฐ์ •ํ•œ๋‹ค. ์ฃผ์š” Monitoring ํ•ญ๋ชฉ์œผ๋กœ๋Š” ์˜จ๋„, ์ „๋ฅ˜, ์ „์••, ๋ถ€๋ถ„๋ฐฉ์ „ ๋ฐ ์Šต๋„ ๋“ฑ์ด ์žˆ๋‹ค. Sensgear๋Š” Monitoring๊ณผ Inspection ๋ฐ Test ๋“ฑ์˜ ๊ฒฐ๊ณผ๋ฅผ ํ†ตํ•ด ์ž์‚ฐ์˜ ํ˜„์žฌ์™€ ๋ฏธ๋ž˜์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ํ‰๊ฐ€ํ•˜๊ณ , ์ด๋ฅผ ์‹œ๊ฐํ™”ํ•˜์—ฌ Inspection ์ฃผ๊ธฐ๋ฅผ ์ตœ์ ํ™”ํ•จ์œผ๋กœ์จ ๋ฐฐ์ „๋ฐ˜์˜ ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•˜๊ณ  TCO๋ฅผ ์ ˆ๊ฐํ•˜๋Š” ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ์ˆ˜ํ–‰ํ•˜๋Š” ๋ฐฉ์•ˆ์„ ์ œ์‹œํ•œ๋‹ค. Siemens์˜ Sensgear๋Š” ๋””์ง€ํ„ธ ํ˜์‹ ์„ ํ†ตํ•ด ์ž์‚ฐ์˜ ์„ฑ๋Šฅ์„ ์ตœ์ ํ™”ํ•˜๊ณ , ์œ ์ง€๋ณด์ˆ˜ ๋น„์šฉ์„ ์ ˆ๊ฐํ•˜๋Š” ๋ฐ ์ค‘์ ์„ ๋‘๊ณ  ์žˆ๋‹ค.

3.5 Hitachi - Lumada

Hitachi๋Š” Lumada ์ž์‚ฐ๊ด€๋ฆฌ ํ”Œ๋žซํผ์„ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜ ์ž์‚ฐ๊ด€๋ฆฌ ์„œ๋น„์Šค๋ฅผ ์ œ๊ณตํ•˜๊ณ  ์žˆ๋‹ค[13]. Lumada๋Š” ์ž์‚ฐ์˜ ์šด์˜ ํšจ์œจ์„ฑ์„ ๋†’์ด๊ณ  ๋ฐ์ดํ„ฐ ๊ธฐ๋ฐ˜ ์˜์‚ฌ๊ฒฐ์ •์„ ์ง€์›ํ•˜๋Š” ๋””์ง€ํ„ธ ์†”๋ฃจ์…˜์„ ์ œ๊ณตํ•œ๋‹ค. ์ž์‚ฐ์˜ ๋””์ง€ํ„ธ ํŠธ์œˆ์„ ์ƒ์„ฑํ•˜์—ฌ ๊ฐ€์ƒ ํ™˜๊ฒฝ์—์„œ ์ž์‚ฐ ์ƒํƒœ๋ฅผ Monitoringํ•˜๊ณ  ๋ถ„์„ํ•˜๋ฉฐ, ๋‹ค์–‘ํ•œ ๋ฐ์ดํ„ฐ ์†Œ์Šค๋ฅผ ํ†ตํ•ฉํ•˜์—ฌ ์ข…ํ•ฉ์ ์ธ ๋ฐ์ดํ„ฐ ๋ถ„์„์„ ๊ฐ€๋Šฅํ•˜๊ฒŒ ํ•œ๋‹ค. Lumada๋Š” AI์™€ ๊ณ ๊ธ‰ ๋ถ„์„ ๋„๊ตฌ๋ฅผ ํ™œ์šฉํ•˜์—ฌ ์ž์‚ฐ ์ƒํƒœ๋ฅผ ์˜ˆ์ธกํ•˜๊ณ  ์ตœ์ ์˜ ์œ ์ง€๋ณด์ˆ˜ ์‹œ์ ์„ ๊ฒฐ์ •ํ•œ๋‹ค. ์ด๋Ÿฌํ•œ ์ ‘๊ทผ ๋ฐฉ์‹์€ ์šด์˜ ํšจ์œจ์„ฑ์„ ๋†’์ด๊ณ  ์ž์‚ฐ์˜ ์„ฑ๋Šฅ์„ ์ตœ์ ํ™”ํ•  ์ˆ˜ ์žˆ๋‹ค. ์ฃผ์š” Monitoring ํ•ญ๋ชฉ์œผ๋กœ๋Š” ์˜จ๋„, ์ „๋ฅ˜, ์ „์••, ๋ถ€๋ถ„๋ฐฉ์ „ ๋ฐ ์Šต๋„ ๋“ฑ์ด ์žˆ๋‹ค. Lumada๋Š” ํ˜„์žฌ์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฟ๋งŒ ์•„๋‹ˆ๋ผ ๋ฏธ๋ž˜์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ํ‰๊ฐ€ํ•˜์—ฌ ์ž”์—ฌ์ˆ˜๋ช…์„ ์‹œ๊ฐํ™”ํ•  ์ˆ˜ ์žˆ๋‹ค. ์ด๋Ÿฌํ•œ ํ‰๊ฐ€๋ฅผ ํ†ตํ•ด Inspection ์ฃผ๊ธฐ๋ฅผ ํƒ„๋ ฅ์ ์œผ๋กœ ์กฐ์ ˆํ•˜์—ฌ ๋ฐฐ์ „๋ฐ˜์˜ ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•˜๊ณ  ์ž์‚ฐ์˜ TCO๋ฅผ ์ตœ์ ํ™”ํ•  ์ˆ˜ ์žˆ๋‹ค. Hitachi์˜ Lumada ํ”Œ๋žซํผ์€ ๋ฐ์ดํ„ฐ ๊ธฐ๋ฐ˜์˜ ํ†ต์ฐฐ๋ ฅ์„ ํ†ตํ•ด ์ž์‚ฐ๊ด€๋ฆฌ์˜ ์‹ ๋ขฐ์„ฑ๊ณผ ํšจ์œจ์„ฑ์„ ๊ทน๋Œ€ํ™”ํ•˜๊ณ , ์šด์˜์˜ ํˆฌ๋ช…์„ฑ๊ณผ ์˜ˆ์ธก ๊ฐ€๋Šฅ์„ฑ์„ ๋†’์ผ ์ˆ˜ ์žˆ๋‹ค.

์•ž์„œ ๊ธฐ์ˆ ํ•œ ๋ฐ”์™€ ๊ฐ™์ด ABB, Schneider Electric, GE, Siemens, Hitachi ๋“ฑ ์ฃผ์š” ๋ฐฐ์ „๋ฐ˜ ์ œ์กฐ์‚ฌ๋“ค์€ ๊ฐ๊ฐ์˜ ํŠนํ™”๋œ ์ž์‚ฐ๊ด€๋ฆฌ ํ”Œ๋žซํผ์„ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜์˜ ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ํšจ์œจ์ ์œผ๋กœ ์ˆ˜ํ–‰ํ•  ์ˆ˜ ์žˆ๋Š” ์„œ๋น„์Šค๋ฅผ ์ œ๊ณตํ•˜๊ณ  ์žˆ๋‹ค. ์ด๋“ค ํ”Œ๋žซํผ์€ ๋ชจ๋‘ ์ž์‚ฐ์˜ ์‹ค์‹œ๊ฐ„ Monitoring, ์˜ˆ์ธก ์œ ์ง€๋ณด์ˆ˜, ๋ฐ์ดํ„ฐ ๋ถ„์„์„ ํ†ตํ•œ ์ตœ์ ํ™” ๋“ฑ์„ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜์˜ ์‹ ๋ขฐ์„ฑ๊ณผ ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•˜๊ณ , ์ž์‚ฐ์˜ TCO๋ฅผ ์ ˆ๊ฐํ•˜๋Š” ๋ฐ ์ค‘์ ์„ ๋‘๊ณ  ์žˆ๋‹ค. ์ด๋Ÿฌํ•œ ๊ณตํ†ต๋œ ๋ชฉํ‘œ์™€ ๊ธฐ๋Šฅ์„ ๋ฐ”ํƒ•์œผ๋กœ, ๋ฐฐ์ „๋ฐ˜ ์ž์‚ฐ๊ด€๋ฆฌ๋Š” ์ ์ฐจ ๋””์ง€ํ„ธํ™”๋˜๊ณ  ์žˆ์œผ๋ฉฐ, ๋ฐ์ดํ„ฐ ๊ธฐ๋ฐ˜์˜ ํ†ต์ฐฐ๋ ฅ์„ ํ†ตํ•ด ์ž์‚ฐ์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ์ •ํ™•ํžˆ ํ‰๊ฐ€ํ•˜๊ณ  ์˜ˆ์ธกํ•˜๋Š” ๋ฐฉํ–ฅ์œผ๋กœ ๋ฐœ์ „ํ•˜๊ณ  ์žˆ๋‹ค๋Š” ์‚ฌ์‹ค์„ ํ™•์ธํ•  ์ˆ˜ ์žˆ๋‹ค.

4. ๋ฐฐ์ „๋ฐ˜์˜ ์ˆ˜๋ช…

4.1 Failure Rate

๋ฐฐ์ „๋ฐ˜์˜ ๊ณ ์žฅ์€ ์ „๋ ฅ์‹œ์Šคํ…œ์—์„œ ์ „๋ ฅ์˜ ๋ถ„๋ฐฐ ๋ฐ ์ œ์–ด, ๊ณ„ํ†ต์˜ ๋ณดํ˜ธ๋ฅผ ์ˆ˜ํ–‰ํ•˜์ง€ ๋ชปํ•˜๋Š” ์ƒํƒœ๋ฅผ ์˜๋ฏธํ•˜๋ฉฐ, ์ด์™€ ๊ฐ™์€ Major Failure๋ฅผ ์œ ๋ฐœํ•˜๋Š” ์ฃผ์š” Component๋Š” ์ฐจ๋‹จ๊ธฐ, ๋ฒ„์Šค๋ฐ”, ๊ทธ๋ฆฌ๊ณ  ์ผ€์ด๋ธ”์ด๋‹ค. ๋ณธ ์—ฐ๊ตฌ์—์„œ๋Š” Major Failure๋ฅผ ์œ ๋ฐœํ•˜๋Š” Component ์ค‘ ์ฐจ๋‹จ๊ธฐ์™€ ๋ฒ„์Šค๋ฐ”์˜ Failure Rate๋ฅผ ์กฐ์‚ฌํ•˜์˜€์œผ๋ฉฐ, ๊ทธ ๊ฐ’์„ ํ‘œ 2์— ๋‚˜ํƒ€๋‚ด์—ˆ๋‹ค[14]. ์—ฌ๊ธฐ์—์„œ VCB์˜ Failure๋Š” 100-CB-years ๋‹น ๊ณ ์žฅ ๋ฐœ์ƒ ์ˆ˜๋ฅผ ๋‚˜ํƒ€๋‚ด๋ฉฐ, ์ด ๊ฐ’์€ ๊ตฌ์ฒด์ ์œผ๋กœ 100๊ฐœ์˜ ์ฐจ๋‹จ๊ธฐ ์ค‘์—์„œ ๋ฐœ์ƒํ•˜๋Š” ๋งคํ•ด ๊ณ ์žฅ ํšŸ์ˆ˜๋ฅผ ์˜๋ฏธํ•œ๋‹ค. Failure Rate ๊ฐ’์„ ํ†ตํ•ด ์ฐจ๋‹จ๊ธฐ์˜ ์‹ ๋ขฐ์„ฑ์„ ํ‰๊ฐ€ํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ๋ฐฐ์ „๋ฐ˜์˜ ์ฃผ์š” Component์ธ ์ฐจ๋‹จ๊ธฐ์˜ ๊ณ ์žฅ ๊ฐ€๋Šฅ์„ฑ์„ ์ •๋Ÿ‰์ ์œผ๋กœ ๋ถ„์„ํ•  ์ˆ˜ ์žˆ๋‹ค. ๋˜ํ•œ 5kV ์ด์ƒ์˜ ์ •๊ฒฉ์ „์••์„ ๊ฐ€์ง€๋Š” ๋ฒ„์Šค๋ฐ”์˜ ์—ฐ๊ฐ„ Failure ํšŸ์ˆ˜์ธ Failure/year๋Š” ์ ˆ์—ฐ ํ”ผ๋ณต์„ ์ ์šฉํ•จ์œผ๋กœ์จ ์•ฝ 4.4๋ฐฐ ๊ฐ์†Œํ•˜๋Š” ๊ฒƒ์œผ๋กœ ํ™•์ธ๋˜์—ˆ๋‹ค. ์ด๋Š” Bare Busbar๋Š” ์ ˆ์—ฐ ์ฒ˜๋ฆฌ๊ฐ€ ๋˜์–ด ์žˆ์ง€ ์•Š์•„ ๋จผ์ง€์™€ ์Šต๊ธฐ ๋ฐ ์˜ค์—ผ๋ฌผ ๋“ฑ์˜ ํ™˜๊ฒฝ์  ์š”์ธ์— ๋” ์ทจ์•ฝํ•˜๊ธฐ ๋•Œ๋ฌธ์ธ ๊ฒƒ์œผ๋กœ ํŒ๋‹จ๋œ๋‹ค.

ํ‘œ 2 ์ฐจ๋‹จ๊ธฐ์™€ ๋ฒ„์Šค๋ฐ”์˜ Failure Rate

Table 2 Failure rates of CB and busbars

Component

Year

Value

Source

VCB

(failure/100-CB-years)

72.5kV

2010

0.032

Utilities

(JPN)

Busbar

(failure/year)

Bare

busbar

1990

-

1993

0.01794

U.S. Army

Insulated

busbar

0.0041

U.S. Army

4.2 ๊ต์ฒด์ˆ˜๋ช…

๋ฐฐ์ „๋ฐ˜์˜ ์ˆ˜๋ช…๊ณผ ๊ด€๋ จ๋œ ์—ฐ๊ตฌ์™€ ์ œ์กฐ์‚ฌ ๋ฐ ์ „๋ ฅ์‚ฌ์˜ ์šด์ „ ๊ฒฝํ—˜์„ ์ข…ํ•ฉํ•œ ๊ฒฐ๊ณผ, ๋ฐฐ์ „๋ฐ˜์˜ ๊ต์ฒด์ˆ˜๋ช…์€ ์ตœ์†Œ 30๋…„ ์ด์ƒ์ธ ๊ฒƒ์œผ๋กœ ์กฐ์‚ฌ๋˜์—ˆ๋‹ค. Siemens์—์„œ๋Š” ๋ฐฐ์ „๋ฐ˜์˜ ์‚ฌ์šฉ ๊ฐ€๋Šฅํ•œ ์ˆ˜๋ช…์„ 30๋…„ ์ด์ƒ์œผ๋กœ ๋ช…์‹œํ•˜๊ณ  ์žˆ๋Š”๋ฐ, ์ด๋Š” Siemens์˜ ์ œํ’ˆ์ด ์ตœ์†Œ 30๋…„ ๋™์•ˆ ์•ˆ์ •์ ์ธ ์„ฑ๋Šฅ์„ ์œ ์ง€ํ•  ์ˆ˜ ์žˆ์Œ์„ ์˜๋ฏธํ•œ๋‹ค[15]. EA Technology๋Š” ๋ฐฐ์ „๋ฐ˜์˜ ๊ณ ์žฅ๋ฐœ์ƒ ํ™•๋ฅ ์€ ๋งค์šฐ ๋‚ฎ์œผ๋ฉฐ, ์ผ๋ฐ˜์ ์œผ๋กœ 40๋…„ ์ด์ƒ์˜ ์ˆ˜๋ช…์„ ๊ฐ€์ง„๋‹ค๊ณ  ๋ฐœํ‘œํ•˜์˜€๋‹ค[16]. Reyrolle์— ๋”ฐ๋ฅด๋ฉด, ๋ฐฐ์ „๋ฐ˜์€ ์„ค์น˜ ํ›„ ์•ฝ 35๋…„์—์„œ 40๋…„์ด ์ง€๋‚˜๋ฉด ์ ์ ˆํ•œ Intervention์„ ํ†ตํ•ด ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•  ์ˆ˜ ์žˆ๋‹ค๊ณ  ์ œ์‹œํ•˜๊ณ  ์žˆ๋‹ค. ์ด๋Š” ๋ฐฐ์ „๋ฐ˜์ด 35๋…„์—์„œ 40๋…„ ์ •๋„ ์šด์ „๋  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ์ดํ›„์—๋Š” Intervention๊ณผ ๊ฐ™์€ ๊ณผ์ •์„ ํ†ตํ•ด ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•  ์ˆ˜ ์žˆ์Œ์„ ์˜๋ฏธํ•œ๋‹ค[17]. ์˜๊ตญ์˜ EPN (Eastern Power Networks)์—์„œ๋Š” ๋ฐฐ์ „๋ฐ˜์˜ ๊ธฐ๋Œ€์ˆ˜๋ช…์„ 44๋…„์œผ๋กœ ์„ค์ •ํ•˜๊ณ  ์žˆ๋‹ค. ๊ธฐ๋Œ€์ˆ˜๋ช…์€ ์„ค๋น„์˜ ๊ต์ฒด ์‹œ์ ์ด ์•„๋‹Œ, ์„ค๋น„์˜ ์—ดํ™”๊ฐ€ ์‹œ์ž‘๋˜๋Š” ์‹œ์ ์„ ์˜๋ฏธํ•œ๋‹ค. ๋”ฐ๋ผ์„œ ๋ฐฐ์ „๋ฐ˜์€ 44๋…„๊ฐ„ Failure Rate๊ฐ€ ๋งค์šฐ ๋‚ฎ์•„ ์•ˆ์ •์ ์œผ๋กœ ์šด์ „๋  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ๊ธฐ๋Œ€์ˆ˜๋ช… ์ดํ›„์—๋Š” ์ ์ฐจ ์—ดํ™”๊ฐ€ ์ง„ํ–‰๋˜์–ด Failure Rate๊ฐ€ ์ฆ๊ฐ€ํ•  ๊ฒƒ์œผ๋กœ ์˜ˆ์ƒ๋œ๋‹ค[18]. ํ˜ธ์ฃผ์˜ ์ „๋ ฅ์‚ฌ์ธ Power and Water๋Š” ๋ฐฐ์ „๋ฐ˜์˜ ๊ต์ฒด์ˆ˜๋ช…์„ ์ƒํƒœ ํ‰๊ฐ€ ๊ฒฐ๊ณผ๋ฅผ ๋ฐ”ํƒ•์œผ๋กœ ๊ฒฐ์ •ํ•œ๋‹ค๊ณ  ๋ฐœํ‘œํ•˜์˜€๋‹ค. Power and Water์—์„œ๋Š” CBRM์„ ๊ธฐ๋ฐ˜์œผ๋กœ ํ‰๊ท  ๊ต์ฒด์ˆ˜๋ช…์„ 45๋…„์œผ๋กœ ์‚ฐ์ •ํ•˜์˜€๋‹ค[19]. ํ˜ธ์ฃผ๋Š” ์„ฌ ์ง€์—ญ์œผ๋กœ ๋‚™๋ขฐ์™€ ์—ด๋Œ€์„ฑ ํƒœํ’, ๊ทธ๋ฆฌ๊ณ  ๋†’์€ ๋ถ€์‹ ํ™˜๊ฒฝ๊ณผ ๊ฐ™์€ ๊ธฐํ›„ ๋ฐ ๋‚ ์”จ ์กฐ๊ฑด์˜ ์˜ํ–ฅ์„ ๋ฐ›์„ ์ˆ˜ ์žˆ๋Š” ์ง€์—ญ์ด๋‹ค. ์ด๋Ÿฌํ•œ ์กฐ๊ฑด์„ ๊ณ ๋ คํ•  ๋•Œ, ํ‰๊ท  ๊ต์ฒด์ˆ˜๋ช…์ด 45๋…„์œผ๋กœ ์‚ฐ์ •๋˜์—ˆ๋‹ค๋Š” ์ ์€ ํƒ€ ์ง€์—ญ์—์„œ๋„ ๋ฐฐ์ „๋ฐ˜์— ๋Œ€ํ•œ ์ ์ ˆํ•œ ๊ด€๋ฆฌ์™€ ์œ ์ง€๋ณด์ˆ˜๋ฅผ ์‹ค์‹œํ•˜๋ฉด, 45๋…„ ์ด์ƒ์˜ ๊ต์ฒด์ˆ˜๋ช…์„ ํ™•๋ณดํ•  ์ˆ˜ ์žˆ์Œ์„ ์‹œ์‚ฌํ•œ๋‹ค. ์ธ๋„๋„ค์‹œ์•„์˜ ์ „๋ ฅ์‚ฌ์ธ PHE ONWJ (Pertamina Hulu Energi Offshore North West Java)์—์„œ๋Š” ๋ฐฐ์ „๋ฐ˜์˜ ์„œ๋น„์Šค ์ˆ˜๋ช…์„ 30๋…„์—์„œ 40๋…„์œผ๋กœ ๊ฐ„์ฃผํ•œ๋‹ค[20]. ์ด๋Š” ์—ด๋Œ€์„ฑ ์ง€์—ญ์˜ ํŠน์„ฑ๊ณผ ํ•ด์–‘์„ฑ ์šด์ „ํ™˜๊ฒฝ์„ ๊ณ ๋ คํ•œ ๊ฒฐ๊ณผ๋กœ, 30๋…„์—์„œ 40๋…„ ์‚ฌ์ด์—๋Š” ๋ฐฐ์ „๋ฐ˜์ด ์•ˆ์ •์ ์œผ๋กœ ์šด์ „๋  ์ˆ˜ ์žˆ์Œ์„ ์˜๋ฏธํ•œ๋‹ค.

์ด์™€ ๊ฐ™์€ ์—ฌ๋Ÿฌ ์ž๋ฃŒ๋ฅผ ์ข…ํ•ฉํ•ด ๋ณผ ๋•Œ, ๋ฐฐ์ „๋ฐ˜์˜ ๊ต์ฒด์ˆ˜๋ช…์€ ๋ณดํ†ต 30๋…„์—์„œ 45๋…„ ์‚ฌ์ด์ธ ๊ฒƒ์„ ์•Œ ์ˆ˜ ์žˆ๋‹ค. ๊ฐ ์ œํ’ˆ์˜ ํ’ˆ์งˆ๊ณผ ์šด์ „ํ™˜๊ฒฝ ๋“ฑ์˜ ์กฐ๊ฑด์— ๋”ฐ๋ผ ๋‹ค์†Œ ์ฐจ์ด๊ฐ€ ์žˆ์„ ์ˆ˜ ์žˆ์ง€๋งŒ, ์ ์ ˆํ•œ Intervention๊ณผ ์œ ์ง€๋ณด์ˆ˜ ๊ณผ์ •์„ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜์˜ ์ˆ˜๋ช…์€ ํšจ์œจ์ ์œผ๋กœ ๊ด€๋ฆฌ๋  ์ˆ˜ ์žˆ์Œ์„ ์•Œ ์ˆ˜ ์žˆ๋‹ค.

4.3 ์ˆ˜๋ช…์—ฐ์žฅ

๋ฐฐ์ „๋ฐ˜๊ณผ ๊ฐ™์€ ์ „๋ ฅ์„ค๋น„๋Š” ์„ค์น˜ ํ›„ ์˜ค๋žœ ์‹œ๊ฐ„ ๋™์•ˆ ์—ฐ์†์ ์œผ๋กœ ์‚ฌ์šฉ๋˜๊ธฐ ๋•Œ๋ฌธ์— ์ž์—ฐ์ ์ธ ๋งˆ๋ชจ์™€ ๊ณ ์žฅ ๋ฐ ์žฅ์•  ๋“ฑ์ด ๋ฐœ์ƒํ•  ์ˆ˜ ์žˆ๋‹ค. ์ด์™€ ๊ฐ™์€ ๋ฌธ์ œ๋ฅผ ์˜ˆ๋ฐฉํ•˜๊ณ  ํšจ์œจ์ ์œผ๋กœ ๊ด€๋ฆฌํ•˜๊ธฐ ์œ„ํ•ด Monitoring๊ณผ Inspection ๋ฐ Test ๊ฒฐ๊ณผ๋ฅผ ์ข…ํ•ฉ์ ์œผ๋กœ ๋ถ„์„ํ•ด์•ผ ํ•œ๋‹ค. ํ•„์š”์— ๋”ฐ๋ผ Refurbishment๋‚˜ Retrofit๊ณผ ๊ฐ™์€ Intervention ์ž‘์—…์„ ์‹ค์‹œํ•˜์—ฌ ์ „๋ ฅ์„ค๋น„์˜ ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•  ์ˆ˜ ์žˆ๋‹ค. ์ด๋Ÿฌํ•œ ์ฒด๊ณ„์ ์ธ ์ ‘๊ทผ์€ ์ „๋ ฅ์„ค๋น„์˜ ์‹ ๋ขฐ์„ฑ๊ณผ ํšจ์œจ์„ฑ ๋ฐ ๊ฒฝ์ œ์„ฑ์„ ์œ ์ง€ํ•˜๋Š” ๋ฐ ์ค‘์š”ํ•œ ์—ญํ• ์„ ํ•œ๋‹ค. Refurbishment๋Š” ๊ธฐ์กด ๋ฐฐ์ „๋ฐ˜์˜ ์„ฑ๋Šฅ์„ ๋ณต์›ํ•˜๊ณ  ๊ฐœ์„ ํ•˜๋Š” ๊ณผ์ •์œผ๋กœ์จ ์ด๋ฅผ ํ†ตํ•˜์—ฌ ์ฐจ๋‹จ๊ธฐ์™€ ๋ฒ„์Šค๋ฐ”์˜ ์†์ƒ๋œ ๋ถ€๋ถ„์„ ์ˆ˜๋ฆฌํ•˜๊ฑฐ๋‚˜ ๊ต์ฒดํ•˜์—ฌ ์ดˆ๊ธฐ ์„ฑ๋Šฅ์„ ํšŒ๋ณตํ•  ์ˆ˜ ์žˆ๋‹ค. ์ฐจ๋‹จ๊ธฐ์˜ ๊ฒฝ์šฐ์—๋Š” ์ฃผ ์ ‘์ ์˜ ๋งˆ๋ชจ๋‚˜ ์Šคํ”„๋ง์˜ ํ”ผ๋กœ ๋“ฑ์„ ์ ๊ฒ€ํ•˜๊ณ  ํ•„์š”ํ•œ ๊ฒฝ์šฐ, ๊ต์ฒดํ•˜์—ฌ ๊ธฐ๊ณ„์  ์‹ ๋ขฐ์„ฑ์„ ํšŒ๋ณตํ•จ์œผ๋กœ์จ ๊ณ ์žฅ ๊ฐ€๋Šฅ์„ฑ์„ ์ €๊ฐ์‹œํ‚ฌ ์ˆ˜ ์žˆ๋‹ค. ๋ฒ„์Šค๋ฐ”๋Š” ๋ถ€์‹์ด๋‚˜ ์˜ค์—ผ์„ ์ œ๊ฑฐํ•˜๊ณ  ์ ˆ์—ฐ ์ƒํƒœ๋ฅผ ๊ฐœ์„ ํ•จ์œผ๋กœ์จ ์ „๊ธฐ์  ์„ฑ๋Šฅ์„ ๋ณต์›ํ•  ์ˆ˜ ์žˆ๋‹ค. ์ด๋ฅผ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜์€ ์ดˆ๊ธฐ ์„ฑ๋Šฅ์„ ํšŒ๋ณตํ•˜๊ฒŒ ๋˜๋ฉฐ, ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•  ์ˆ˜ ์žˆ๋‹ค. Retrofit์€ ๊ธฐ์กด ๋ฐฐ์ „๋ฐ˜์— ์ตœ์‹  ๊ธฐ์ˆ ์„ ๋„์ž…ํ•˜์—ฌ ์„ฑ๋Šฅ์„ ํ–ฅ์ƒ์‹œํ‚ค๋Š” ๋ฐฉ๋ฒ•์ด๋‹ค. ์˜ˆ๋ฅผ ๋“ค์–ด, ๊ธฐ์กด์˜ ์œ ์ž… ์ฐจ๋‹จ๊ธฐ๋ฅผ ์ตœ์‹ ์˜ ์ง„๊ณต ์ฐจ๋‹จ๊ธฐ๋กœ ๊ต์ฒดํ•จ์œผ๋กœ์จ ๋” ๋†’์€ ์ฐจ๋‹จ์šฉ๋Ÿ‰๊ณผ ์‹ ๋ขฐ์„ฑ์„ ์ œ๊ณตํ•  ์ˆ˜ ์žˆ๋‹ค. ์ตœ์‹  ์ ˆ์—ฐ๊ธฐ์ˆ ์„ ์ ์šฉํ•œ ๋ฒ„์Šค๋ฐ”๋Š” ๋” ๋†’์€ ์ „๊ธฐ์  ์•ˆ์ •์„ฑ๊ณผ ๋‚ด๊ตฌ์„ฑ์„ ํ™•๋ณดํ•  ์ˆ˜ ์žˆ๋‹ค. ์ด๋Ÿฌํ•œ ์—…๊ทธ๋ ˆ์ด๋“œ๋ฅผ ํ†ตํ•ด ์ „์ฒด ์‹œ์Šคํ…œ์˜ ํšจ์œจ์„ฑ๊ณผ ์•ˆ์ „์„ฑ์„ ํ–ฅ์ƒ์‹œํ‚ฌ ์ˆ˜ ์žˆ๋‹ค[21].

์ „๋ ฅ์„ค๋น„์˜ ์ƒ์• ์ฃผ๊ธฐ ๋™์•ˆ ์œ„ํ—˜๋„๋ฅผ ์™„ํ™”ํ•˜๊ณ  ์‹ ๋ขฐ์„ฑ์„ ํ–ฅ์ƒ์‹œํ‚ค๊ธฐ ์œ„ํ•ด์„œ๋Š” ๊ธฐ์ˆ ์  ํ‰๊ฐ€๋ฟ๋งŒ ์•„๋‹ˆ๋ผ ๊ฒฝ์ œ์„ฑ ํ‰๊ฐ€๋ฅผ ์ข…ํ•ฉ์ ์œผ๋กœ ์‹ค์‹œํ•˜๋Š” ์ž์‚ฐ๊ด€๋ฆฌ ๊ธฐ๋ฒ• ์ ์šฉ์ด ํ•„์š”ํ•˜๋‹ค. Monitoring๊ณผ Inspection ๋ฐ Test ๊ฒฐ๊ณผ๋ฅผ ๊ธฐ๋ฐ˜์œผ๋กœ ๋ฐ์ดํ„ฐ๋ฅผ ์ข…ํ•ฉ์ ์œผ๋กœ ๋ถ„์„ํ•˜๊ณ , ์ ์ ˆํ•œ ์œ ์ง€๋ณด์ˆ˜ ๊ณ„ํš์„ ์ˆ˜๋ฆฝํ•˜์—ฌ ์‹ค์‹œํ•จ์œผ๋กœ์จ ์ตœ์ ์˜ ๋ฐฐ์ „๋ฐ˜ ์„ฑ๋Šฅ์„ ์œ ์ง€ํ•  ์ˆ˜ ์žˆ๋‹ค. ์ด๋ฅผ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜์˜ ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•˜๊ณ , ์žฅ๊ธฐ์ ์œผ๋กœ๋Š” TCO๋ฅผ ์ตœ์ ํ™”ํ•  ์ˆ˜ ์žˆ๋‹ค. ๋ฐฐ์ „๋ฐ˜์˜ ์ˆ˜๋ช…์€ ์„ค๊ณ„, ์ œ์กฐ, ์„ค์น˜, Monitoring, Inspection, Test ๋ฐ ์œ ์ง€๋ณด์ˆ˜์™€ ๊ฐ™์€ ๋‹ค์–‘ํ•œ ์š”์ธ๋“ค์— ์˜ํ•ด ๊ฒฐ์ •๋  ์ˆ˜ ์žˆ์œผ๋ฏ€๋กœ, ์ดˆ๊ธฐ ์„ค๊ณ„๊ณผ์ •๋ถ€ํ„ฐ ์œ ์ง€๋ณด์ˆ˜ ๋‹จ๊ณ„๊นŒ์ง€ ์ „ ๊ณผ์ •์— ๊ฑฐ์ณ ์ฒด๊ณ„์ ์œผ๋กœ ๊ด€๋ฆฌํ•ด์•ผ ํ•œ๋‹ค. ๊ทธ๋ฆผ 7์€ ์ˆ˜๋ช…์ด ๋‹คํ•œ ์ „๋ ฅ์„ค๋น„์˜ ์ˆ˜๋ช…์—ฐ์žฅ์„ ๊ฒฐ์ •ํ•˜๊ธฐ ์œ„ํ•œ ํ”„๋กœ์„ธ์Šค๋ฅผ ๋‚˜ํƒ€๋‚ด๊ณ  ์žˆ๋‹ค[22].

๊ทธ๋ฆผ 7. ์ „๋ ฅ์„ค๋น„์˜ ์ˆ˜๋ช…์—ฐ์žฅ ๊ฒฐ์ • ํ”„๋กœ์„ธ์Šค

Fig. 7. Process for determining the life extension of a power asset

../../Resources/kiee/KIEE.2024.73.8.1412/fig7.png

์ „๋ ฅ์„ค๋น„์˜ ์ˆ˜๋ช…์—ฐ์žฅ์„ ๊ฒฐ์ •ํ•˜๊ธฐ ์œ„ํ•ด์„œ๋Š” ๋จผ์ € ์ „๋ ฅ์„ค๋น„์˜ ๊ฑด์ „๋„ ์ƒํƒœ ํ‰๊ฐ€๋ฅผ ์‹ค์‹œํ•œ๋‹ค. ํ‰๊ฐ€ ๊ฒฐ๊ณผ๊ฐ€ ์ผ์ • ์ˆ˜์ค€ ์ดํ•˜๋กœ ๋–จ์–ด์ ธ ์œ„ํ—˜๋„๊ฐ€ ๋†’์•„์ง„ ๊ฒฝ์šฐ์—๋Š” ์œ„ํ—˜๋„๋ฅผ ์™„ํ™”ํ•˜๊ธฐ ์œ„ํ•œ ์กฐ์น˜๊ฐ€ ํ•„์š”ํ•˜๋‹ค. ์ด๋•Œ, ๊ธฐ์ˆ ์  ํ‰๊ฐ€๋ฅผ ํ†ตํ•ด ์ˆ˜๋ช…์—ฐ์žฅ์ด ๊ฐ€๋Šฅํ•œ์ง€๋ฅผ ๊ฒ€ํ† ํ•œ๋‹ค. ๊ธฐ์ˆ ์  ํ‰๊ฐ€ ๊ณผ์ •์—์„œ ์ˆ˜๋ช…์—ฐ์žฅ์ด ๊ฐ€๋Šฅํ•˜๋‹ค๊ณ  ํŒ๋‹จ๋˜๋ฉด, ์ƒ์• ์ฃผ๊ธฐ๋น„์šฉ์„ ๊ณ ๋ คํ•œ ๊ฒฝ์ œ์„ฑ ํ‰๊ฐ€๋ฅผ ์‹ค์‹œํ•˜์—ฌ ๊ฒฝ์ œ์„ฑ ํ™•๋ณด ์—ฌ๋ถ€๋ฅผ ํ™•์ธํ•œ๋‹ค. ๊ฒฝ์ œ์„ฑ์ด ํ™•๋ณด๋˜๋ฉด, ์œ„ํ—˜๋„๋ฅผ ์™„ํ™”ํ•˜๊ธฐ ์œ„ํ•œ ์กฐ์น˜๋กœ์จ ์ˆ˜๋ช…์—ฐ์žฅ์„ ์‹ค์‹œํ•˜๊ฒŒ ๋œ๋‹ค. ๋ฐ˜๋ฉด, ๊ธฐ์ˆ ์  ํ‰๊ฐ€๋‚˜ ๊ฒฝ์ œ์„ฑ ํ‰๊ฐ€ ์ค‘ ํ•˜๋‚˜๋ผ๋„ ๊ธฐ์ค€์„ ๋งŒ์กฑํ•˜์ง€ ๋ชปํ•˜๋ฉด, ์ˆ˜๋ช…์—ฐ์žฅ์ด ์•„๋‹Œ ๊ต์ฒด๋ฅผ ์‹ค์‹œํ•˜์—ฌ ์œ„ํ—˜๋„๋ฅผ ์™„ํ™”ํ•˜๊ฒŒ ๋œ๋‹ค. ์ด๋Ÿฌํ•œ ์ฒด๊ณ„์ ์ธ ์ ‘๊ทผ์„ ํ†ตํ•ด ์ „๋ ฅ์„ค๋น„์˜ ์•ˆ์ •์„ฑ๊ณผ ๊ฒฝ์ œ์„ฑ์„ ๋™์‹œ์— ํ™•๋ณดํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ์ด๋ฅผ ํ†ตํ•ด ์ „๋ ฅ์„ค๋น„์˜ ํšจ์œจ์ ์ธ ์šด์ „๊ณผ TCO ์ตœ์ ํ™”๋ฅผ ์‹คํ˜„ํ•  ์ˆ˜ ์žˆ๋‹ค.

์˜๊ตญ์˜ ์ „๋ ฅ์‚ฌ์ธ SPEN (Scottish Power Energy Networks)์€ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ํ‰๊ฐ€ํ•˜๊ณ  ์œ„ํ—˜๋„๋ฅผ ์ •๋Ÿ‰ํ™”ํ•˜์—ฌ ์ ์ ˆํ•œ Intervention์„ ์‹ค์‹œํ•จ์œผ๋กœ์จ ๋ฐฐ์ „๋ฐ˜์— ๋Œ€ํ•œ ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ์ˆ˜ํ–‰ํ•˜๊ณ  ์žˆ๋‹ค[23]. ์ด๋ฅผ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜์˜ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ๊ฐœ์„ ํ•˜๊ณ  ์œ„ํ—˜๋„๋ฅผ ์™„ํ™”ํ•จ์œผ๋กœ์จ ์‹ ๋ขฐ์„ฑ์„ ๋†’์ด๊ณ  ์žˆ๋‹ค. SPEN์€ ์•ฝ 10,000์—ฌ ๊ฐœ์˜ 11kV๊ธ‰ ์ฐจ๋‹จ๊ธฐ๋ฅผ ๋ณด์œ ํ•˜๊ณ  ์žˆ์œผ๋ฉฐ, ์ด ์ค‘ ์•ฝ 50%๋Š” 1950๋…„๋Œ€๋ถ€ํ„ฐ 1970๋…„๋Œ€ ์‚ฌ์ด์— ์„ค์น˜๋˜์—ˆ๋‹ค. ์ด๋“ค ๋ฐฐ์ „๋ฐ˜์€ ์—ฌ์ „ํžˆ ํšจ๊ณผ์ ์œผ๋กœ ์šด์ „๋˜๊ณ  ์žˆ์ง€๋งŒ, ์‹ค์ œ๋กœ๋Š” ์„ค๊ณ„ ์ˆ˜๋ช…์— ๊ทผ์ ‘ํ–ˆ๊ฑฐ๋‚˜ ์ด๋ฏธ ์ดˆ๊ณผํ•œ ์ƒํƒœ์ด๋‹ค. ๋”ฐ๋ผ์„œ SPEN์€ ๋ง‰๋Œ€ํ•œ ์ž๋ณธ ํˆฌ์ž๋‚˜ ๋Œ€๊ทœ๋ชจ ๊ต์ฒด๋กœ ์ธํ•œ ์ „๋ ฅ๊ณต๊ธ‰์˜ ์ค‘๋‹จ ์—†์ด ์„ฑ๋Šฅ ํ–ฅ์ƒ์„ ๋‹ฌ์„ฑํ•˜๊ณ ์ž RIIO ED1 (Revenue = Incentives + Innovation + Outputs, Electricity Distribution)์„ ์ถ”์ง„ํ•˜๊ณ  ์žˆ๋‹ค. SPEN๊ณผ DNO (Distribution Network Operator)๋Š” ์ „๋ ฅ๊ทœ์ œ ๊ธฐ๊ด€์ธ Ofgem (Office of Gas and Electricity Markets)์˜ ๊ฐ€๊ฒฉ๊ฒ€ํ†  ๊ทœ์ œ์ธ RIIO ED1์„ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜์˜ ์ƒํƒœ๋ฅผ ๊ฐœ์„ ํ•˜๊ณ  TCO๋ฅผ ์ ˆ๊ฐํ•  ์ˆ˜ ์žˆ๋Š” ๋‹ค์–‘ํ•œ ๋ฐฉ๋ฒ•์„ ๋ชจ์ƒ‰ํ•˜์˜€๋‹ค. RIIO ED1์—์„œ SPEN์˜ ๋ฐฐ์ „๋ฐ˜ ์ž์‚ฐ๊ด€๋ฆฌ ์ „๋žต์€ ๊ธฐ์กด ๋ฐฐ์ „๋ฐ˜์— ๋Œ€ํ•ด ๊ธฐ์ˆ ์  ํ‰๊ฐ€ ๋ฐ ๊ฒฝ์ œ์„ฑ ํ‰๊ฐ€๋ฅผ ์‹ค์‹œํ•œ ํ›„, ์ ์ ˆํ•œ ์œ„ํ—˜๋„ ์™„ํ™” ์กฐ์น˜๋กœ Refurbishment ๋˜๋Š” Retrofit๊ณผ ๊ฐ™์€ Intervention์„ ์ˆ˜ํ–‰ํ•˜๋Š” ๊ฒƒ์ด์—ˆ๋‹ค. SPEN์€ 2015๋…„ 4์›”๋ถ€ํ„ฐ 2023๋…„ 3์›” ์‚ฌ์ด์— ๊ธฐ์กด ๋ฐฐ์ „๋ฐ˜์˜ 12%์— ํ•ด๋‹นํ•˜๋Š” ๋…ธํ›„ ๋ฐฐ์ „๋ฐ˜์— ๋Œ€ํ•ด Intervention์„ ์‹ค์‹œํ•˜์˜€๋‹ค. ๊ทธ๋ฆผ 8์—๋Š” ์‚ฌ์šฉ๋…„์ˆ˜๊ฐ€ 50๋…„์„ ๊ฒฝ๊ณผํ•œ ๋ฐฐ์ „๋ฐ˜์„ ๋Œ€์ƒ์œผ๋กœ Intervention์„ ์‹ค์‹œํ•จ์œผ๋กœ์จ 20๋…„ ์ด์ƒ ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•œ ์‚ฌ๋ก€๋ฅผ ๋‚˜ํƒ€๋‚ด์—ˆ๋‹ค.

๊ทธ๋ฆผ 8. ์‚ฌ๋ก€ ์—ฐ๊ตฌ: Intervention์„ ํ†ตํ•œ ๋ฐฐ์ „๋ฐ˜ ์ˆ˜๋ช…์—ฐ์žฅ

Fig. 8. Case study: Extending the lifespan of switchgear through intervention

../../Resources/kiee/KIEE.2024.73.8.1412/fig8.png

๋…ธํ›„ํ™”๋œ ์ „๋ ฅ์„ค๋น„๋ฅผ ํšจ์œจ์ ์œผ๋กœ ๊ด€๋ฆฌํ•˜๊ธฐ ์œ„ํ•ด์„œ๋Š” ์ž์‚ฐ์˜ ํ˜„์žฌ ๊ฑด์ „๋„ ์ƒํƒœ์™€ ์‹œ๊ฐ„ ๊ฒฝ๊ณผ์— ๋”ฐ๋ฅธ ๊ฑด์ „๋„ ์ƒํƒœ ๋ณ€ํ™”๋ฅผ ์ดํ•ดํ•˜๋Š” ๊ฒƒ์ด ์ค‘์š”ํ•˜๋‹ค. ์ด๋ฅผ ํ†ตํ•ด ์ ์‹œ์— ์˜ฌ๋ฐ”๋ฅธ ์œ ์ง€๋ณด์ˆ˜๋ฅผ ์ˆ˜ํ–‰ํ•˜์—ฌ ๋Œ€ํ˜• ์‚ฌ๊ณ ์˜ ์œ„ํ—˜์„ ์ตœ์†Œํ™”ํ•  ์ˆ˜ ์žˆ๋‹ค. ์ด๋•Œ ์ „๋ ฅ์„ค๋น„์˜ ์‚ฌ์šฉ๋…„์ˆ˜๋Š” ๋ฐ˜๋“œ์‹œ ์‹ ๋ขฐํ•  ์ˆ˜ ์žˆ๋Š” ๊ฑด์ „๋„ ์ƒํƒœ ์ง€ํ‘œ๊ฐ€ ์•„๋‹ˆ๋ฏ€๋กœ, ์ˆ˜๋ช…์—ฐ์žฅ์„ ์œ„ํ•ด ์ž์‚ฐ์„ ๋ชฉ์ ์— ์ ํ•ฉํ•˜๊ฒŒ ์‚ฌ์šฉํ•˜๊ณ  ์„ค๊ณ„ ์ˆ˜๋ช…๋ณด๋‹ค ์˜ค๋ž˜ ์šด์ „ํ•˜๊ธฐ ์œ„ํ•ด์„œ๋Š” ์ง€์†์ ์ด๋ฉด์„œ ๊ณ ๋„ํ™”๋œ ๊ฑด์ „๋„ ์ƒํƒœ ํ‰๊ฐ€ ๋ฐฉ๋ฒ•์„ ์ˆ˜๋ฆฝํ•˜๋Š” ๊ฒƒ์ด ํ•„์š”ํ•˜๋‹ค. ์ด๋Ÿฌํ•œ ํ‰๊ฐ€๋ฅผ ๋ฐ”ํƒ•์œผ๋กœ ์ „๋ ฅ์„ค๋น„์˜ ์‹ค์ œ ๊ฑด์ „๋„ ์ƒํƒœ๋ฅผ ํŒŒ์•…ํ•˜๊ณ , ํ•„์š”ํ•œ ์กฐ์น˜๋ฅผ ์ ๊ธฐ์— ์ทจํ•จ์œผ๋กœ์จ ์„ค๋น„์˜ ์‹ ๋ขฐ์„ฑ๊ณผ ์•ˆ์ „์„ฑ์„ ๋†’์ผ ์ˆ˜ ์žˆ๋‹ค. ์ด๋ฅผ ์œ„ํ•ด SPEN์„ ๋น„๋กฏํ•œ ์˜๊ตญ์˜ ์ „๋ ฅ์‚ฌ๋“ค์€ Monitoring, Inspection, Test ๋ฐ ์ ์ ˆํ•œ ์œ ์ง€๋ณด์ˆ˜ ์ •์ฑ…์„ ์ ์šฉํ•˜๊ณ , ์ž์‚ฐ๊ด€๋ฆฌ ํ‰๊ฐ€ ๋ฐฉ๋ฒ•๋ก ์„ ํ†ตํ•ด ์„ฑ๊ณผ๋ฅผ ๊ทน๋Œ€ํ™”ํ•˜๊ณ  ์žˆ๋‹ค. ๊ทธ๋ฆผ 9๋Š” ์‹œ๊ฐ„ ๊ฒฝ๊ณผ์— ๋”ฐ๋ฅธ ์ „๋ ฅ์„ค๋น„์˜ ์„ฑ๋Šฅ ์ €ํ•˜์™€ Intervention์„ ํ†ตํ•œ ์ˆ˜๋ช…์—ฐ์žฅ๊ณผ ์„ฑ๋Šฅ ํšŒ๋ณต์˜ ๊ด€๊ณ„๋ฅผ ๋ณด์—ฌ์ฃผ๊ณ  ์žˆ๋‹ค. ์ด๋Ÿฌํ•œ ์ ‘๊ทผ ๋ฐฉ์‹์€ ์ „๋ ฅ์„ค๋น„์˜ ์žฅ๊ธฐ์ ์ธ ์‹ ๋ขฐ์„ฑ๊ณผ ํšจ์œจ์„ฑ์„ ๋ณด์žฅํ•˜๊ธฐ ์œ„ํ•ด ์ค‘์š”ํ•œ ์—ญํ• ์„ ํ•œ๋‹ค.

๊ทธ๋ฆผ 9. ์‹œ๊ฐ„ ๊ฒฝ๊ณผ์— ๋”ฐ๋ฅธ ์„ฑ๋Šฅ ์ €ํ•˜ ๋ฐ Intervention์„ ํ†ตํ•œ ์ˆ˜๋ช…์—ฐ์žฅ

Fig. 9. Performance degradation over time and lifespan extension through intervention

../../Resources/kiee/KIEE.2024.73.8.1412/fig9.png

5. ๊ฒฐ ๋ก

๋ณธ ์—ฐ๊ตฌ์—์„œ๋Š” ๋ฐฐ์ „๋ฐ˜์˜ ์ž์‚ฐ๊ด€๋ฆฌ ํšจ์œจ์„ฑ์„ ๋†’์ด๊ธฐ ์œ„ํ•œ ์ˆ˜๋ช…์—ฐ์žฅ ์ „๋žต์„ ๋‹ค๋ฃจ์—ˆ๋‹ค. ์—ฐ๊ตฌ๋ฅผ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜์˜ ์ฃผ์š” Component ์ค‘ Major Failure๋ฅผ ์œ ๋ฐœํ•  ์ˆ˜ ์žˆ๋Š” ์ฐจ๋‹จ๊ธฐ์™€ ๋ฒ„์Šค๋ฐ”, ๊ทธ๋ฆฌ๊ณ  ์ผ€์ด๋ธ”์˜ ๊ณ ์žฅ ์œ ํ˜•์„ ๋ถ„์„ํ•˜๊ณ , ํ•ด์™ธ ์‚ฌ๋ก€๋ฅผ ์กฐ์‚ฌํ•˜์—ฌ ์ตœ๊ทผ ๋„์ž…๋œ ์„ ์ง„ ์ž์‚ฐ๊ด€๋ฆฌ ์ „๋žต๊ณผ ๊ธฐ์ˆ ์„ ํ™•์ธํ•˜์˜€๋‹ค.

๋ฐฐ์ „๋ฐ˜์˜ ์ฃผ์š” Component๋กœ์จ ์ฐจ๋‹จ๊ธฐ, ๋ฒ„์Šค๋ฐ”, ์ผ€์ด๋ธ”์˜ ๊ณ ์žฅ์„ ์˜ˆ๋ฐฉํ•˜๊ธฐ ์œ„ํ•ด์„œ๋Š” ์ง€์†์ ์ธ Monitoring๊ณผ ํšจ์œจ์ ์ธ Inspection ๋ฐ Test๋ฅผ ๊ธฐ๋ฐ˜์œผ๋กœ ํ•˜๋Š” ์œ ์ง€๋ณด์ˆ˜์˜ ๊ณ„ํš ๋ฐ ์‹ค์‹œ๊ฐ€ ํ•„์š”ํ•˜๋‹ค. ํŠนํžˆ, ABB, Schneider Electric, GE, Siemens, Hitachi ๋“ฑ ์ฃผ์š” ๋ฐฐ์ „๋ฐ˜ ์ œ์กฐ์‚ฌ๋“ค์˜ ์ž์‚ฐ๊ด€๋ฆฌ ํ”Œ๋žซํผ์€ ์‹ค์‹œ๊ฐ„ Monitoring๊ณผ Inspection ๋ฐ Test ๊ฒฐ๊ณผ๋ฅผ ๋ฐ”ํƒ•์œผ๋กœ ์˜ˆ์ธก ์œ ์ง€๋ณด์ˆ˜ ๊ณ„ํš์„ ์ˆ˜๋ฆฝํ•˜์—ฌ ๋ฐฐ์ „๋ฐ˜์˜ ์‹ ๋ขฐ์„ฑ์„ ํ–ฅ์ƒ์‹œํ‚ค๊ณ  ์ˆ˜๋ช…์„ ์—ฐ์žฅํ•จ์œผ๋กœ์จ ์ž์‚ฐ์˜ TCO๋ฅผ ์ ˆ๊ฐํ•˜๋Š” ๋ฐ ์ค‘์ ์„ ๋‘๊ณ  ์žˆ๋‹ค. Refurbishment์™€ Retrofit ๋“ฑ์˜ Intervention์„ ํ†ตํ•ด ๋ฐฐ์ „๋ฐ˜์˜ ์ˆ˜๋ช…์„ ์ตœ๋Œ€ํ•œ ์—ฐ์žฅํ•  ์ˆ˜ ์žˆ์œผ๋ฉฐ, ๊ธฐ์ˆ ์  ํ‰๊ฐ€์™€ ๊ฒฝ์ œ์„ฑ ํ‰๊ฐ€๋ฅผ ํ†ตํ•ด ์ตœ์ ์˜ ์œ ์ง€๋ณด์ˆ˜ ๋ฐ ๊ต์ฒด ์ „๋žต์„ ์ˆ˜๋ฆฝํ•˜๋Š” ๊ฒƒ์ด ์ค‘์š”ํ•˜๋‹ค.

๊ตญ๋‚ด์—์„œ๋„ ์ด๋Ÿฌํ•œ ์„ ์ง„ ์‚ฌ๋ก€๋ฅผ ๋„์ž…ํ•˜์—ฌ ์ง€์†์ ์ธ Monitoring๊ณผ Inspection ๋ฐ Test๋ฅผ ํ†ตํ•œ ์ ์ ˆํ•œ ์œ ์ง€๋ณด์ˆ˜ ๊ณ„ํš ์ˆ˜๋ฆฝ ๋ฐ ๋น…๋ฐ์ดํ„ฐ ๊ธฐ๋ฐ˜์˜ ์ž์‚ฐ๊ด€๋ฆฌ ์ „๋žต์„ ์ฑ„ํƒํ•˜๊ณ , ๊ธฐ์ˆ ์„ ๊ฐœ๋ฐœํ•จ์œผ๋กœ์จ ๋ฐฐ์ „๋ฐ˜์˜ ์‹ ๋ขฐ์„ฑ๊ณผ ๊ฒฝ์ œ์„ฑ์„ ํ™•๋ณดํ•ด์•ผ ํ•  ๊ฒƒ์ด๋‹ค. ๋””์ง€ํ„ธ ๊ธฐ์ˆ ๊ณผ ๋น…๋ฐ์ดํ„ฐ ๋ถ„์„์„ ํ™œ์šฉํ•œ ์ž์‚ฐ๊ด€๋ฆฌ ํ”Œ๋žซํผ์˜ ๋„์ž…์€ ์ „๋ ฅ์‹œ์Šคํ…œ์˜ ํšจ์œจ์„ฑ์„ ๊ทน๋Œ€ํ™”ํ•˜๊ณ  TCO๋ฅผ ์ ˆ๊ฐํ•˜๋Š” ๋ฐ ํฌ๊ฒŒ ๊ธฐ์—ฌํ•  ์ˆ˜ ์žˆ์„ ๊ฒƒ์ด๋‹ค.

๋ณธ ์—ฐ๊ตฌ์—์„œ ์ œ์‹œํ•œ ์ˆ˜๋ช…์—ฐ์žฅ ์ „๋žต๊ณผ ์‚ฌ๋ก€ ๋ถ„์„์„ ํ†ตํ•ด, ๊ตญ๋‚ด์—์„œ๋„ ํšจ๊ณผ์ ์ธ ์ž์‚ฐ๊ด€๋ฆฌ๋ฅผ ์ˆ˜ํ–‰ํ•œ๋‹ค๋ฉด ๋ฐฐ์ „๋ฐ˜ ์ž์‚ฐ๊ด€๋ฆฌ์˜ ํšจ์œจ์„ ๋†’์ด๊ณ  ์ „๋ ฅ์‹œ์Šคํ…œ์˜ ์‹ ๋ขฐ์„ฑ์„ ๊ฐ•ํ™”ํ•  ์ˆ˜ ์žˆ์„ ๊ฒƒ์œผ๋กœ ๊ธฐ๋Œ€๋œ๋‹ค.
